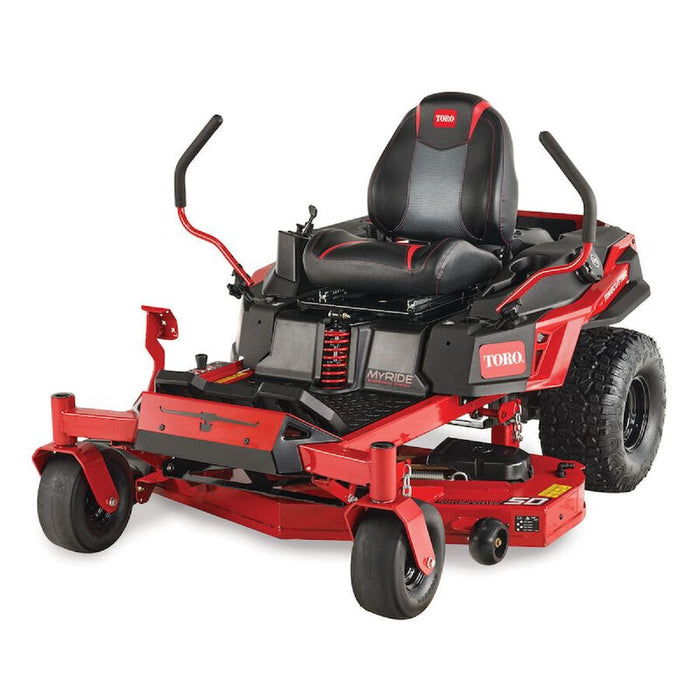

Toro 50" TimeCutter Max MyRide Zero Turn Mower (23hp Kawasaki)

Toro SKU TOR77502 Manufacturer Part #. 77502
Sold out
Original price $7,099.00 - Original price $7,099.00
Original price $7,099.00
$7,099.00
$7,099.00 - $7,099.00
Current price $7,099.00

This item is oversized and/or overweight and does not qualify for free shipping. Delivery surcharges may apply at checkout. Local delivery only.

Return Policy

Please make sure to read our Return Policy.

In-Store Pick Up

Monday-Friday: 9AM-5PM

Availability:
Out of stock

When it comes to your yard, second best just won't cut it. That's why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.

  • Over 100 years of Pro DNA course through the veins of every mower we build.

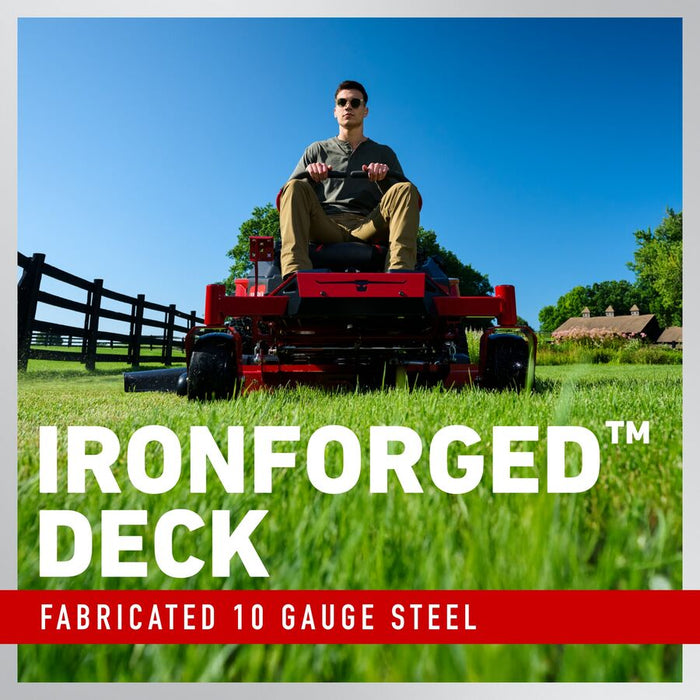

  • Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.

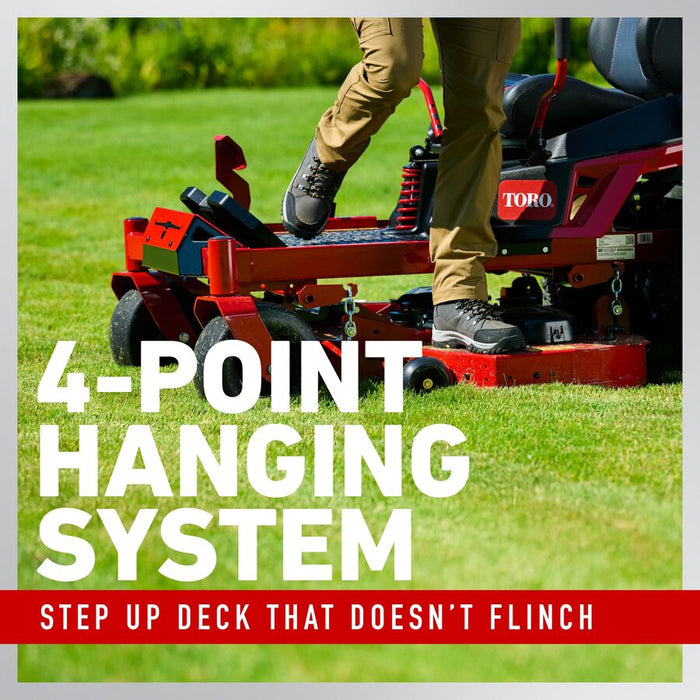

  • The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.

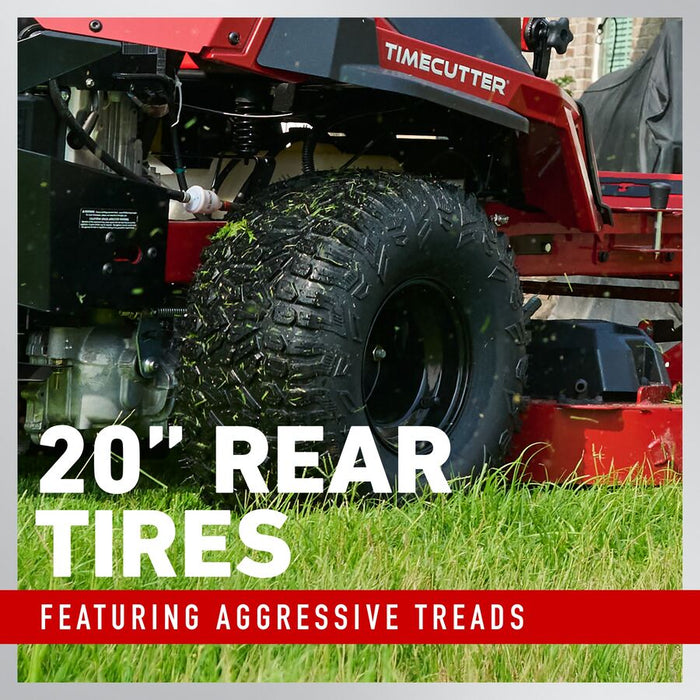

  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
  • Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Technical Specifications
Air Filter Standard Kawasaki Air Cleaner
Anti Scalp Wheels 3 Standard
Armrests Optional
Bagger Capacity 4.9 bushels
Blade Tip Speed 17,600 ft/min / 5,364 m/min
Box Dimension 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic
Clutch Electromagnetic

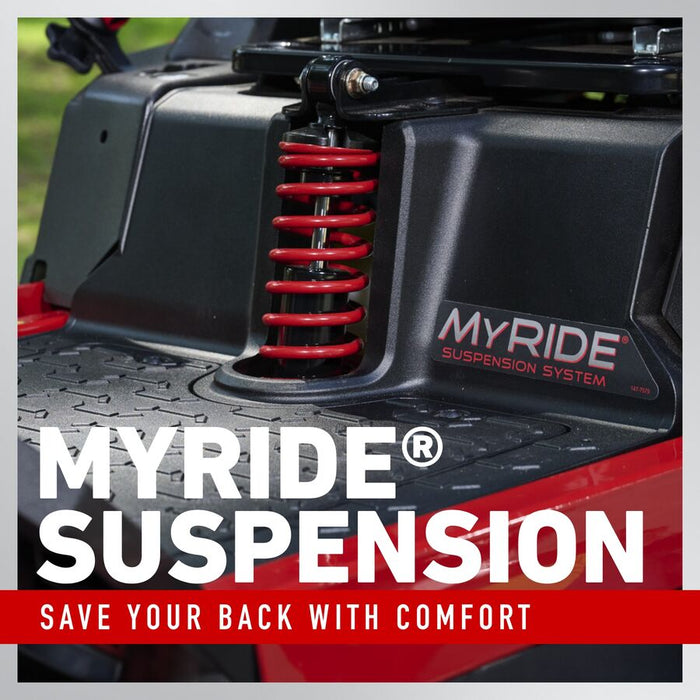

Comfort Platform MyRIDE® Suspension System
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Cutting Width 50 in / 127 cm
Deck Design 10-Gauge steel IrongForged®
Deck Material 10 Gauge Steel
Discharge Chute Side
Drive System Hydro
Drive Tires 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
Drive Type Rear-Wheel Drive

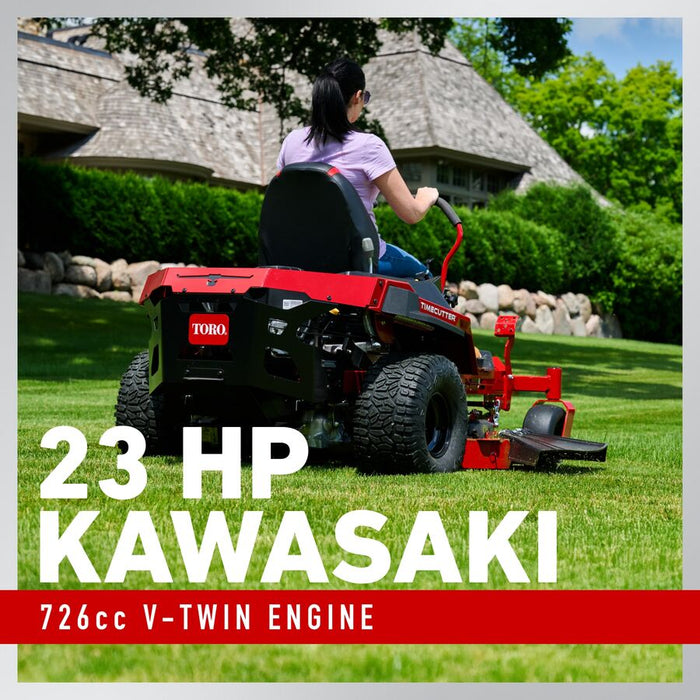

Engine 23 hp Kawasaki FR691V 726cc
Engine Brand Kawasaki
Engine Displacement (cc) 726 cc
Engine Horsepower 23.0 hp
Engine Power (kW) 17.2 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm
Hitch Bracket Standard
Hour Meter Optional
Hydraulic Drive Standard
Lighting Optional
Number of Blades 3
Product Type TimeCutter Max MyRide
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional
Seat 19"Gaming Style
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Twin Lever
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Tires 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (55.8 cm x 27.9 cm) Rear
Tow Capacity Combined machine, user, towed weight may not exceed 1,000 lbs.
Transmission Dual Hydrostatic HG-EZT2200
Washout Port Standard
Weight 684 lbs / 310.3 kg
Product Dimensions
Packaged Length 82 in
Packaged Width 57 in
Packaged Height 35 in
Assembled Length 82 in
Assembled Width 57 in
Assembled Height 35 in
Assembled Weight 684 lb
