Milwaukee 1-5/8" Magnetic Drill Kit
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM

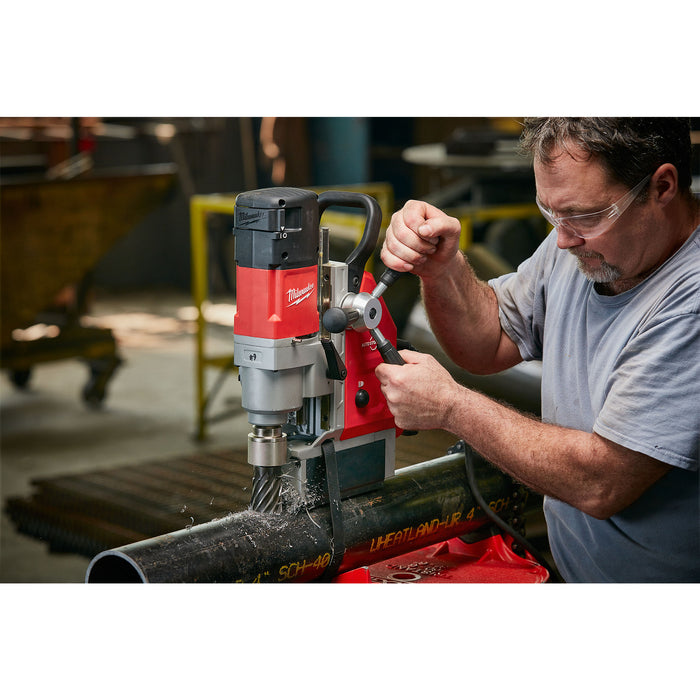

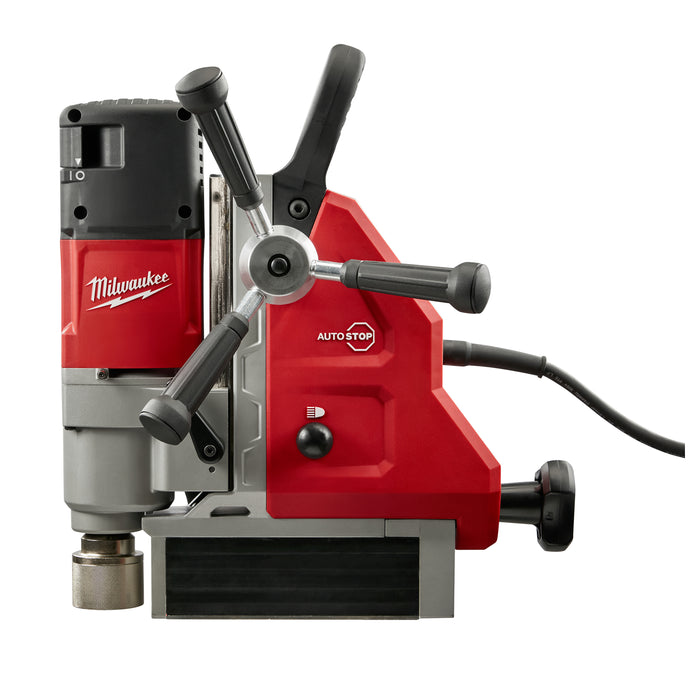

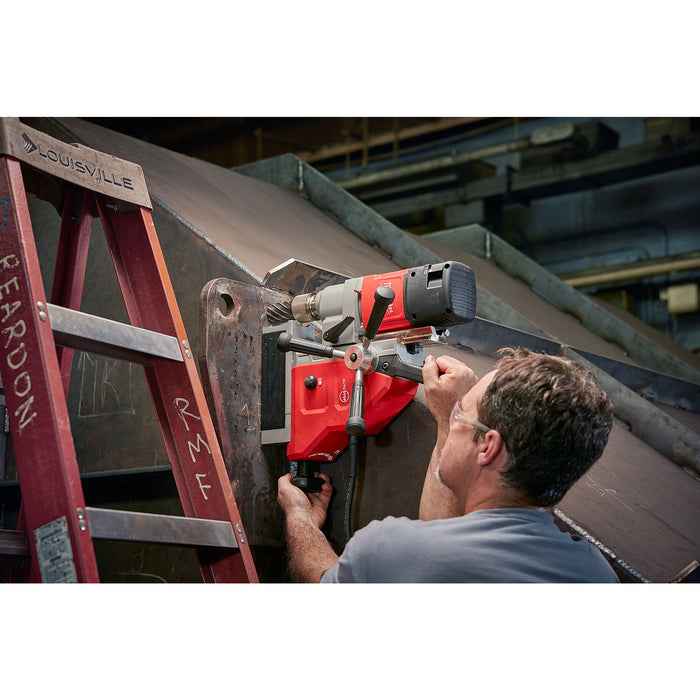

The Milwaukee 1-5/8 in. magnetic drill will deliver the fastest drilling and strongest hold on 1/4 in. steel in its class. It’s 13 amp motor delivers the fastest drilling w/ annular cutters or twist drill bits. Equipped with a 2-speed gear box the tool can be adjusted tool-free between annular cutters at 475 RPM and twist drill bits at 730 RPM. The permanent magnet base operates without electricity for continuous magnetic hold even during power interruption. Activating partial magnet mode with a 1/4 turn of the magnet nob allows for faster, easier hole alignment. This magnet technology makes the Milwaukee 1-5/8 in. magnetic drill better for vertical and overhead drilling applications than traditional electromagnetic models.
- 2 Speed Gear Box: 475/730 RPM
- 3/4" Weldon Quick Change Arbor
- Auto-Stop Lift-Off Detection
- Magnetic Base Operates Without Electricity
- Optimized Cutting & Drilling Speeds
- Powerful 13 Amp Motor
- Strongest Magnetic Hold on 1/4" Steel
- Tool Free Adjustment: Cutter to Twist Bit
- Tool Free Feed-Handle
- Tool Free Motor Head Adjustment
Technical Specifications
| CSA Certified | Yes |
| ETL Listed | Yes |
| UL Listed | Yes |
| Table Material | Steel |
| Drill Press Type | Portable |
| Reverse Function * | No |
| Chuck Key Storage | No |
| 360 degrees Swivel | No |
| Integrated Laser Guide | No |
| Condition | New |
| Material * | Metal |
| Chuck Design | Keyless |
| Corded Cordless | Corded |
| Color Finish | Black; Red |
| Drill Point Pressure (psi) | 750 |
| Speed Range High (rpm) | 730 |
| Cord Length (ft) * | 54 |
| Drill Travel (in) | 5.75 |
| Speed Range | 475 to 730 |
| Speed Range Low (rpm) | 470 |
| Speeds | 2 |
| Capacity Steel | 1-5/8 in |
| Peak Amps (A) * | 13 |
| Steel Capacity (in) | 1.625 |
Product Dimensions
| Packaged Length | 8.2 in |
| Packaged Width | 28 in |
| Packaged Height | 21.9 in |
| Packaged Weight | 49.17 lb |
| Assembled Width | 7.5 in |
| Assembled Height | 15.5 in |
| Assembled Depth | 13 in |
| Assembled Weight | 30.5 lb |
