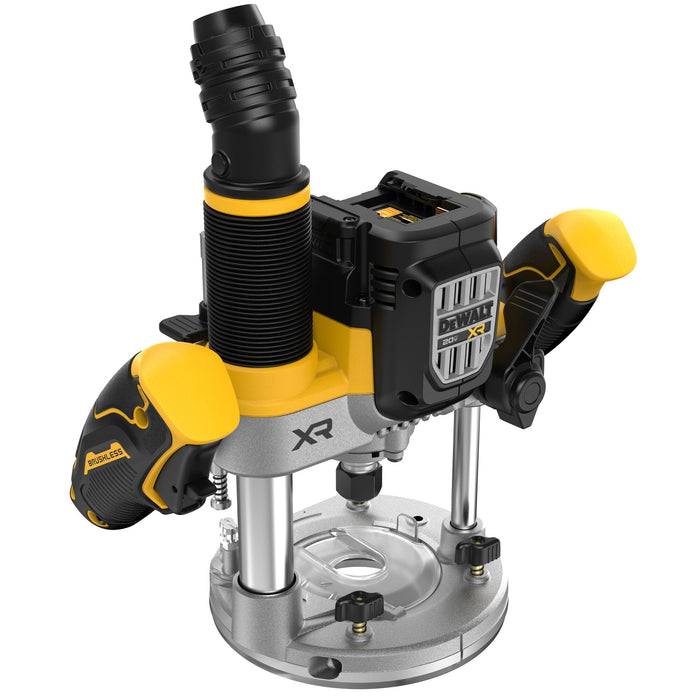

DeWalt 20V XR 2-1/4 HP Plunge Router - Tool Only

DeWalt SKU DEWDCW620B Manufacturer Part #. DCW620B
Original price $479.00
Original price $479.00 - Original price $479.00
Original price $479.00
Current price $479.00
$479.00 - $479.00
Current price $479.00

Earn 1,437 BOLTS when you buy this item.

Pickup available at Vaughan

Usually ready in 24 hours

Return Policy

Please make sure to read our Return Policy.

Standard Shipping

Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.

In-Store Pick Up

Monday-Friday: 9AM-5PM

Availability:
Only 1 left!

The world's first 20V MAX* cordless 2-1/4 Peak HP dedicated plunge router delivers consistent cutting performance without the hassles of a cord. From meticulous edgework to aggressive plunge cuts, the 20V MAX* XR®2-1/4 Peak HP Plunge Router (battery and charger sold separately) features a 2-1/4 peak horsepower brushless motor that seamlessly handles bits up to 2-1/2 in. in diameter. The variable speed dial helps maximize user control while maintaining constant speed under load. This router can complete up to 256 linear feet routing 5/8 in. roundovers in pine on a single charge† and helps to maintain a clean workspace with integrated dust collection with AirLock™ compatibility. Designed for tough jobsites, the PERFORM & PROTECT™ ANTI-ROTATION system senses the motion of the tool and shuts it down if the motion is excessive.

  • OUR MOST POWERFUL 20V MAX* CORDLESS ROUTER** - Take on tough applications without the hassle of a cord.
  • HELP MAXIMIZE PRODUCTIVITY - Complete up to 256 linear feet routing 5/8 in. roundovers in pine on a single charge (using DCBP520 battery sold separately).
  • INTEGRATED DUST COLLECTION WITH AIRLOCK™ COMPATIBILITY - Collects up to 97% of dust cutting grooves in particleboard using DCBP520 battery and DWV015 dust extractor (battery and extractor sold separately)
  • HELP MAXIMIZE CONTROL - Equipped with the ANTI-ROTATION System that senses the rotational motion of the tool and shuts it down if the motion is excessive. The red LED indicator illuminates when the ANTI-ROTATION System is engaged.
  • VERSATILE PERFORMANCE - Quickly match the speed of the router to the application at hand with the variable speed dial with constant speed under load that offers (no-load) 11,000-23,000 RPMs.
  • ADJUSTABLE TURRET STOP - Make quick depth adjustments with the 3-position adjustable turret stop.
  • TOOL-FREE DEPTH ADJUSTMENT SYSTEM - Quickly and accurately setup with the depth adjustment scale, depth stop, micro-fine depth stop adjuster, and micro-fine height adjuster.
  • TOOL-FREE PLUNGE LOCK LEVER - Seamlessly engage and disengage the lock lever without having to remove hands from handles.
  • DUAL LED - Helps provide additional illumination of the work surface for bit visibility.
  • BALANCED DESIGN - Get precise routing performance with a compact design of 11.5 in. in height, weighing only 8 lbs. (tool only).
Technical Specifications
Color Yellow & Black
Collet Diameter 12.7 mm
No Load Speed (RPM) 23000
Product Height [Metric] 292 mm
Product Height [Imperial] 11.5 in
Product Weight [Metric] 3.62 Kg
Max. Cutter Diameter [Imperial] 2.5 in
Max. Cutter Diameter [Metric] 63.5 mm
Power Source Cordless
Is it a Set No
Product Weight [Imperial] 8 lbs
Power 1700 W
Applications
  • Dados
  • Grooves
  • Flutes
  • Edge Profiling
  • Inlays
  • Flush Trimming
  • Rabbeting
  • Mortising
  • Doweling
Includes
  • (1) 20V MAX* XR® 2-1/4 Peak HP Plunge Router
  • (1) 1/4 in. (6.4mm) Collet with nut
  • (1) 1/2 in. (12.7mm) Collet with nut
  • (1) Wrench
  • (1) Dust cap
  • (2) Dust Shield
  • (1) Dust port w/ AIRLOCK™ Compatibility
  • (1) Chip collector
  • (1) Centering cone
  • (2) Sub-base
  • (1) 30mm Guide Bushing
