Milwaukee M12™ Green 360° 3-Plane Laser w/Automatic Alignment & Receiver

Milwaukee SKU MIL364221 MODEL NO. 3642-21
Original price $1,698.00
Original price $1,698.00 - Original price $1,698.00
Original price $1,698.00
Current price $1,698.00
$1,698.00 - $1,698.00
Current price $1,698.00

Pickup available at Vaughan

Usually ready in 24 hours

Standard Shipping

Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.

In-Store Pick Up

Monday-Friday: 9AM-5PM

Availability:
Only 1 left!

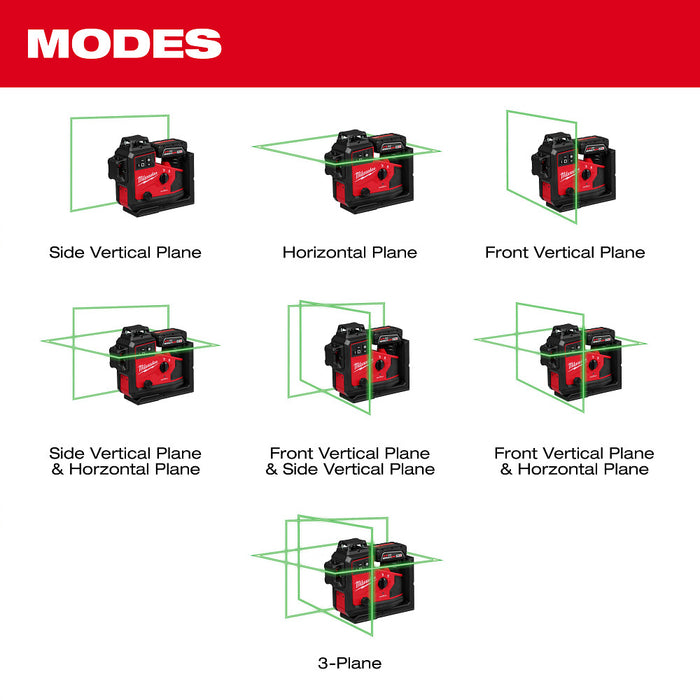

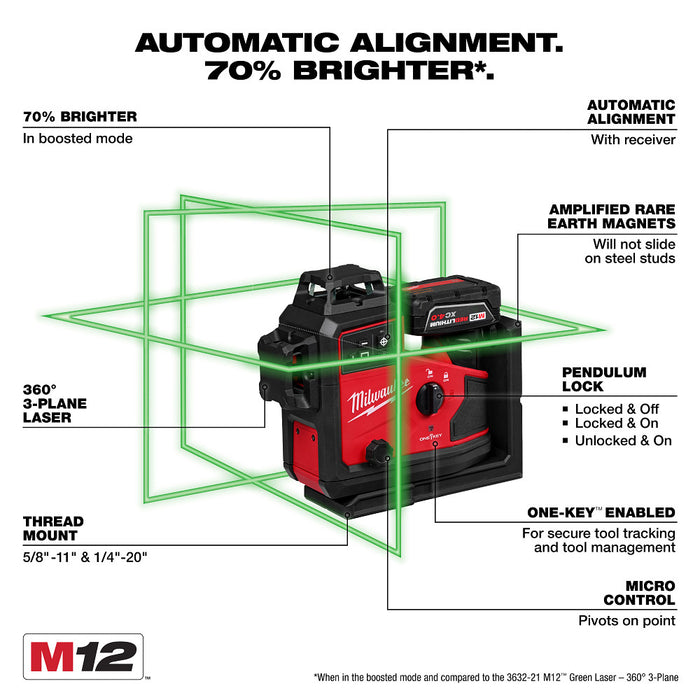

The MILWAUKEE® M12™ Green 360˚ 3-Plane Laser w/Automatic Alignment & Receiver Kit provides Automatic Alignment & 70% Brighter Lines* for a faster, more accurate layout onsite. With the kitted Receiver, you can Automatically Align your Laser up to 125’, making the layout of long runs more efficient. In boosted mode, the 3642-21 is 70% Brighter than our current 3632-21 providing better visibility when it's needed. You will get 10+ Hours of Runtime in Standard Brightness, and 6+ Hours of Runtime in Boosted mode when paired with the 4.0 XC battery pack. You can adjust the brightness and put the laser to sleep from the receiver which is ideal for saving power during breaks. The three 360° planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. The integrated bracket features amplified rare earth magnets that provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry-leading Milwaukee® M12™ System, this 360˚ laser level is compatible with all M12™ Batteries.

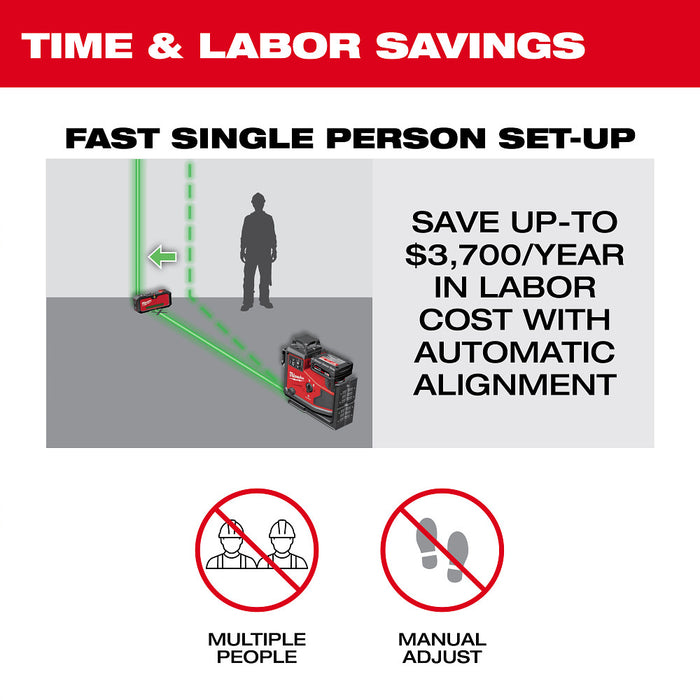

  • Automatic Alignment Up-To 125'

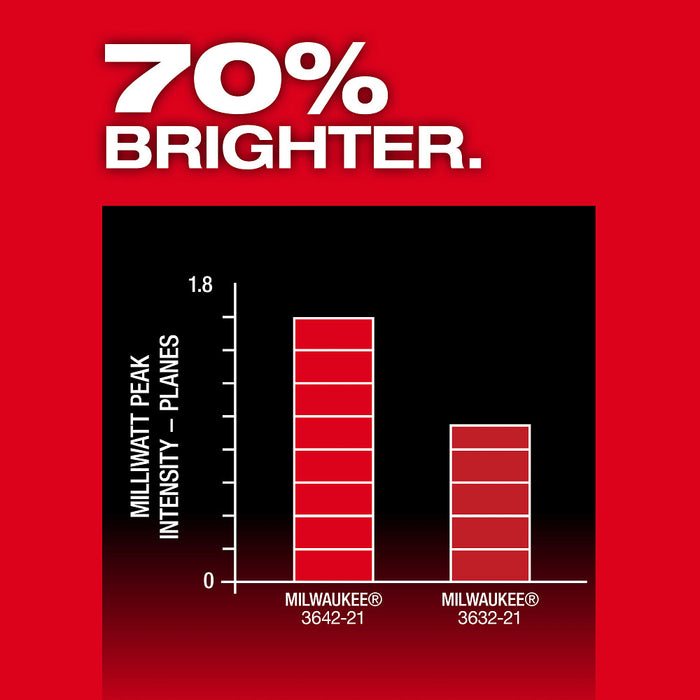

  • 70% Brighter, when in the Boosted Mode and compared to the 3632 M12™ Green 3-Plane Laser
  • 10+ Hours of Runtime

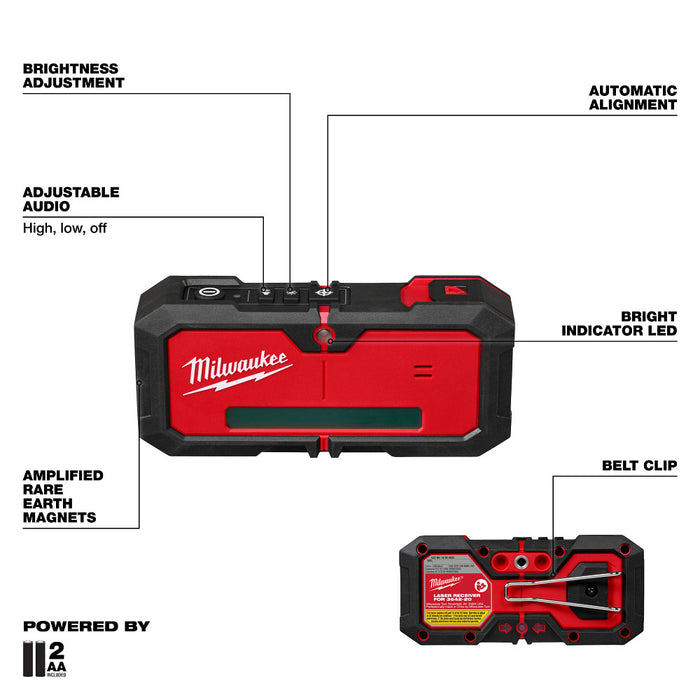

  • Remote Brightness Adjustment - Standard, Boost & Off
  • Micro Control - Pivots on Point

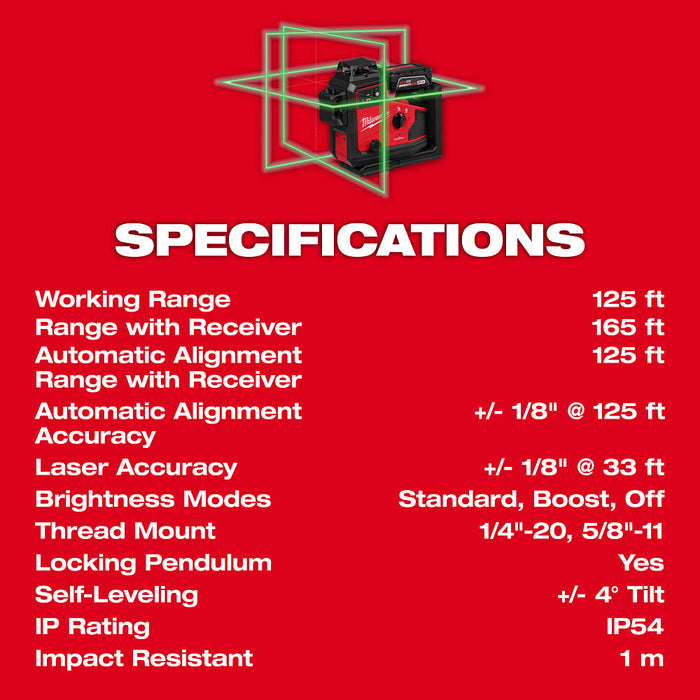

  • 125 ft. Working Range
  • 165 ft. Range with Detector
  • Accuracy: +/- 1/8" @ 33 ft
  • Automatic Alignment Accuracy: +/- 1/8" @ 125 ft
  • Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
  • Self Leveling: +/- 4° Tilt
  • IP54 Rated: Water and Dust Resistant
  • 1m Impact Resistance
  • ONE-KEY™ Tracking and Tool Management
  • 1/4-20 & 5/8-11 Thread Mount
Technical Specifications
Material Glass Filled Nylon
LED Display No
Battery Size 12 Volt
Weight (lbs) 3.78
Case Included Yes
Case Material Molded Plastic
Self Leveling Yes
Color / Finish Red
Tripod Included No
Indoor / Outdoor Indoor
Laser Level Type 360 Plane
Automatic Operation Yes
Battery Voltage (V) 12
Accessories Included No
Laser Level Beam Type Beam
Laser Level Functions Plumb & Level & Square
Maximum Distance (ft) 125
Out -Of - Level Shutoff No
Projects Beam 360 degrees Yes
Laser Level Mounting Method Wall or Tripod
Wireless Remote Control Included No
Accurate to Within __ in per 100 ft 0.375
Product Dimensions
Packaged Length 6.22 in
Packaged Width 19.49 in
Packaged Height 15.16 in
Assembled Width 4.6 in
Assembled Height 7.39 in
Assembled Depth 8.4 in

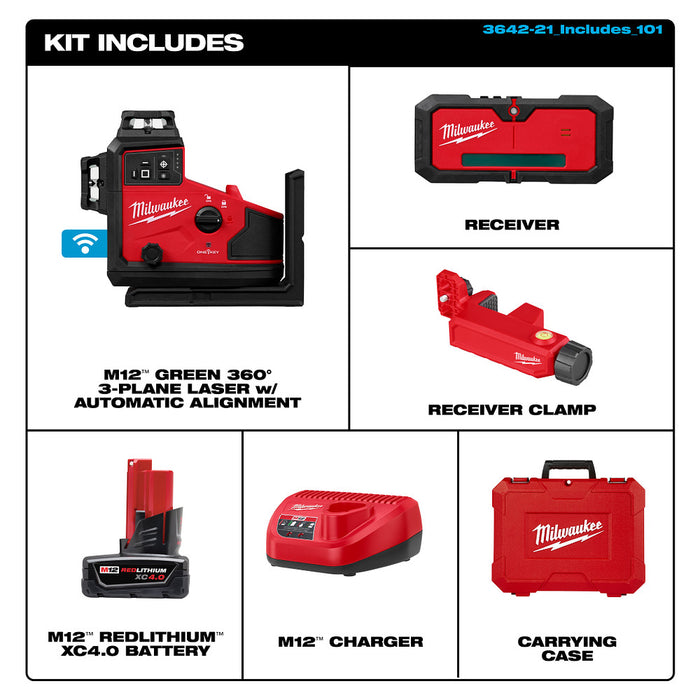

Includes
  • (1) Green 360° 3-Plane Laser w/Automatic Alignment (3642-20)
  • (1) Laser Receiver
  • (1)M12 4.0Ah XC Battery (48-11-2440)
  • (1) M12 Charger (48-59-2440)
  • (2) AA Batteries
  • (1) Carrying Case
