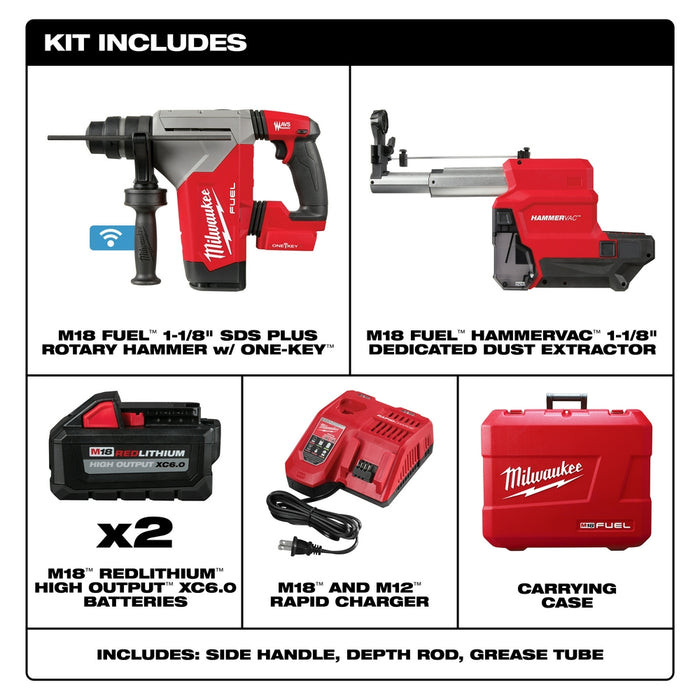

Milwaukee M18 FUEL 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY & HAMMERVAC Dedicated Dust Extractor Kit
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM

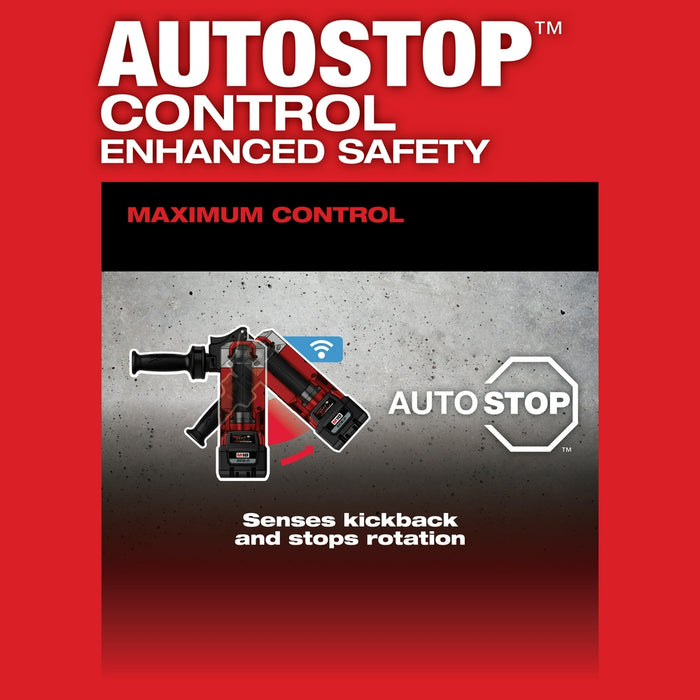

The MILWAUKEE® M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit is the next generation of cordless rotary hammers delivering ultimate jobsite performance and productivity. The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the fastest drilling and hardest-hitting rotary hammer in its class with AUTOSTOP™ Control for enhanced safety, drilling up to 50 5/8" x 3" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. This cordless hammer drill provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. The Milwaukee M18 FUEL™ HAMMERVAC™ 1-1/8" Dedicated Dust Extractor features an inline design engineered to connect directly to and be power by the M18 FUEL™ 1-1/8” SDS Plus Rotary Hammer. Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. This dust extractor has OSHA Table One Compliance for respirable crystalline silica when drilling up to 1-1/8" in diameter and 8" in depth. This extractor features AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use. The dust box comes equipped with a vacuum port for suctioning out the dust with a large vacuum or dust extractor instead of dumping the dust out into a trash receptacle.
- POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
- REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
- The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
- 3.6 ft-lbs Impact Energy
- ONE-KEY™ technology allows for tracking, tool security, and inventory management
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
- Includes M18 HAMMERVAC 1-1/8" Dedicated Dust Extractor
- AUTOPULSE Filter Cleaning Mechanism cleans the dust extractor filter automatically after use
- OSHA Table 1 Compliant Solution
- Dust Extractor Capacity: Up to 1-1/8" in Diameter and Up to 8" in Depth
- 800 RPM and 4,600 BPM
Technical Specifications
| Max RPM | 800 |
| Condition | New |
| FUEL™ | Yes |
| UL Listed | Yes |
| Drill Type | Rotary Hammer Drilll |
| ETL Listed | No |
| Material | Metal |
| Handle Type | Side Handle |
| Side Handle | Yes |
| Battery Size | 18 Volt |
| Battery Type | Lithium Ion |
| Chuck Design | Not Applicable |
| Chuck Type | SDS Plus |
| Color Finish | Black; Gray; Red |
| Motor Type | POWERSTATE™ Brushless |
| CSA Certified | No |
| Case Included | Yes |
| Depth Control | Adjustable |
| Handle Type | Drop Motor |
| Maximum RPM | 800 |
| Switch Type | Trigger |
| Power Source | Cordless |
| Product Type | Cordless Rotary Hammer |
| AUTO STOP ™ | Yes |
| Corded Cordless | Cordless |
| Handle Material | Rubber |
| Type of Modes | Rotary Hammer, Drill Only, Hammer Only, Chisel Rotation |
| Badge Branding | FUEL™ |
| Battery System | M18™ |
| Chuck Size (in) | 1-1/8" |
| Housing Material | Plastic |
| Includes Charger | Yes |
| Lock-on Switch | No |
| Soft Grip Handle | Yes |
| Variable Speed | Yes |
| Battery Voltage | 18 |
| Brushless Motor | Yes |
| Chisel Rotation | Yes |
| Integrated Light | Yes |
| Reverse Function | Yes |
| Solid Bit Capacity | N/A |
| Battery Composition | Lithium-Ion (Li-ion) |
| Core Bit Capacity | 2-1/2" |
| LED Charge Indicator | Yes |
| ONE-KEY™ Enabled | Yes |
| Power Tool Branding | FUEL™ |
| Blows Per Minute (bpm) | 4600 |
| Impact Energy (ft-lbs) | 3.65 |
| Product Storage Included | Case |
| Battery Quantity Included | 2 |
| Dust Extractor Included | Yes |
| Powered Tool Power Source | Electric - Cordless |
| Rotary Hammer Size (in) | 1-1/8" |
| Thin Wall Core Bit Capacity | Yes |
| Number of Batteries Included | 2 |
| Number of Batteries Required | 1 |
| Anti Vibration System (AVS) | Yes |
| Weight Battery Installed (lb) | 15.7 |
| Battery Charger Input Voltage | 18 |
| Weight Excluding Battery (lb) | 13.2 |
| Maximum Concrete Bit Size (in) | 1.25 |
| VACLINK™ Wireless Dust Control | No |
Product Dimensions
| Packaged Length | 7.52 in |
| Packaged Width | 28.15 in |
| Packaged Height | 21.14 in |
| Assembled Width | 3.4 in |
| Assembled Height | 10.2 in |
| Assembled Depth | 15.2 in |
