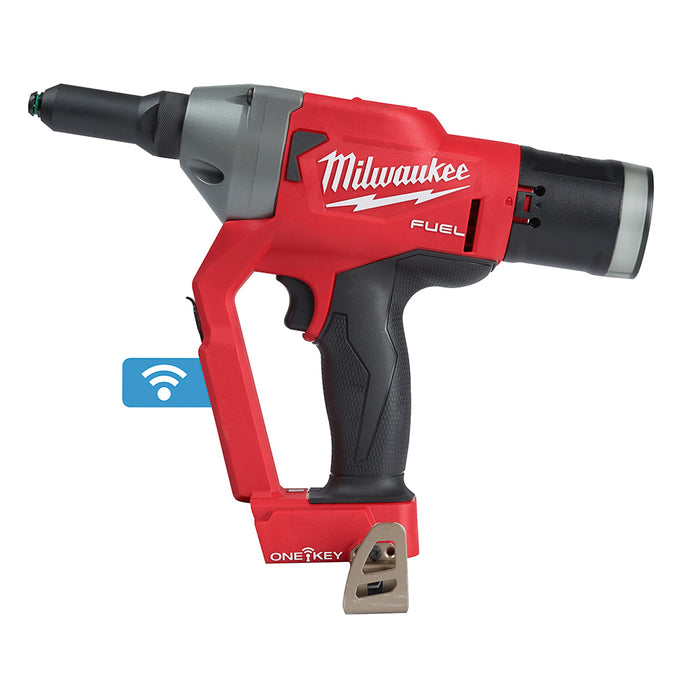

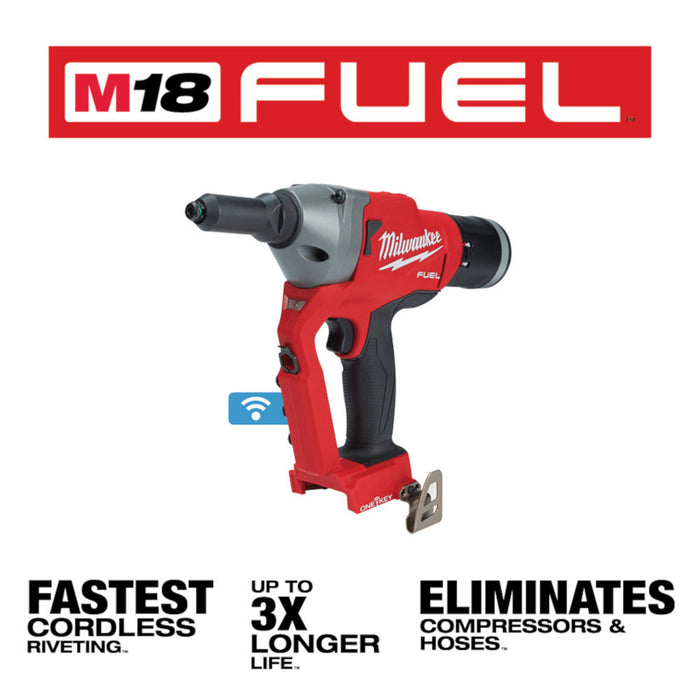

Milwaukee M18 FUEL 1/4" Blind Rivet Tool w/ ONE-KEY
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM

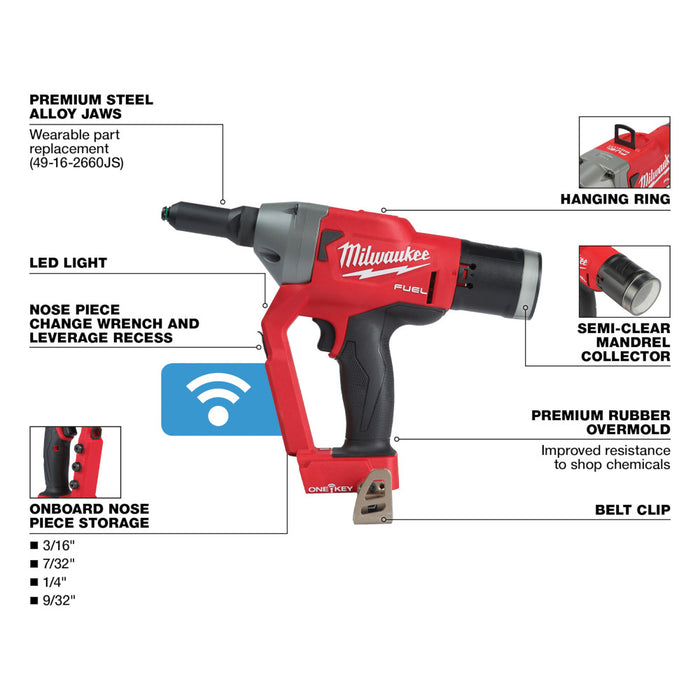

The MILWAUKEE® M18 FUEL™ 1/4” Blind Rivet Tool w/ ONE-KEY™ is the fastest cordless rivet tool. It eliminates the need for hoses and compressors while delivering up to 3X longer life than other cordless riveters. This rivet gun significantly increases productivity, installing rivets up to 50% faster than cordless competitors. The premium steel alloy 3-jaw design delivers more work between jaw changes. While lightweight, this Milwaukee rivet gun was designed to withstand harsh shop or assembly plant environments, manufactured with an all-metal gearcase, impact strength plastics, and protective over-mold. The POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials. This rivet tool pulls up to 900 3/16” aluminum or 500 1/4” aluminum blind rivets on one charge with an M18™ REDLITHIUM™ CP2.0 battery (not included). M18™ REDLITHIUM™ Battery Packs fit M18™ tools, providing more work per charge and more work over the battery life. REDLINK PLUS™ Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, over-heating, and over-discharge. ONE-KEY™ compatibility allows for tracking and managing tools.
- Fastest Cordless Riveting
- Up to 3X Longer Life
- Eliminates Compressors & Hoses

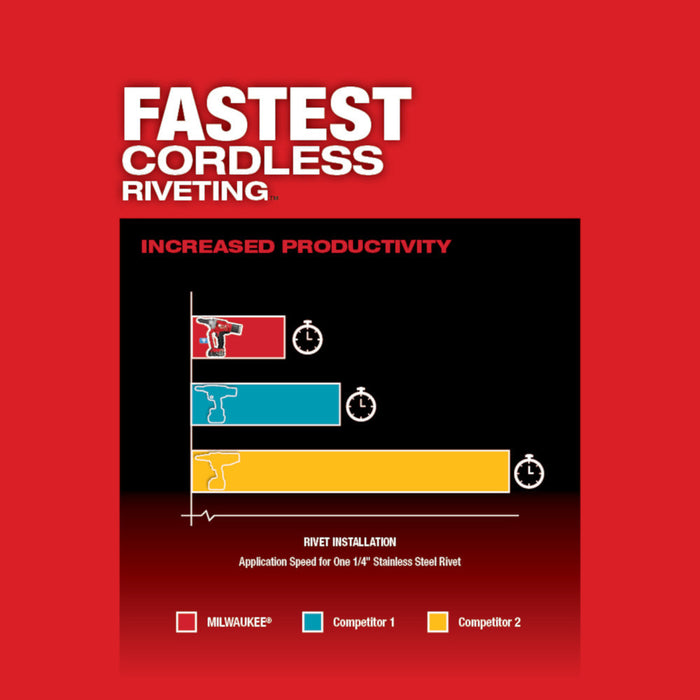

- Up to 50% faster than cordless competitors

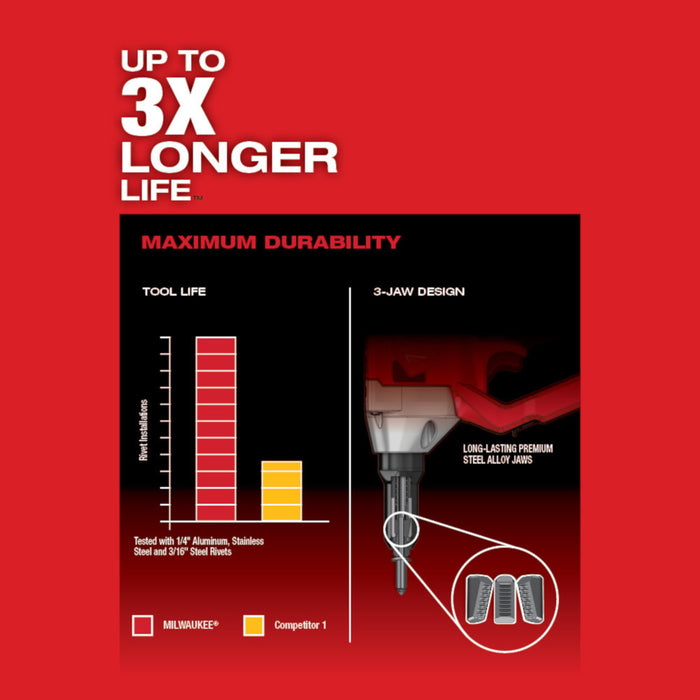

- Maximum tool and jaw durability provide up to 3X longer life
- Eliminates compressors and hoses providing lower cost of ownership, greater productivity, more portability and more safety

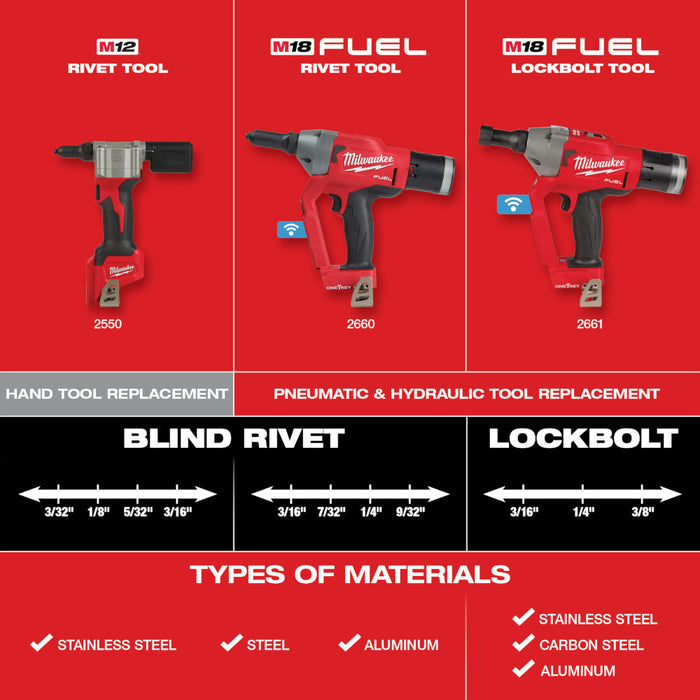

- Installs 3/16" (4.8mm), 7/32" (6.0mm), 1/4" (6.4mm) and 9/32" (7.0mm) aluminum, steel, and stainless steel rivets
- Installs up to 500 1/4" aluminum blind rivets on one REDLITHIUM™ CP 2.0Ah battery charge
- POWERSTATE™ Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials
- 1.18" stroke length
- Weighs only 5.6 lbs. with REDLITHIUM™2.0Ah battery
- Only 12.5" in length including the mandrel collector

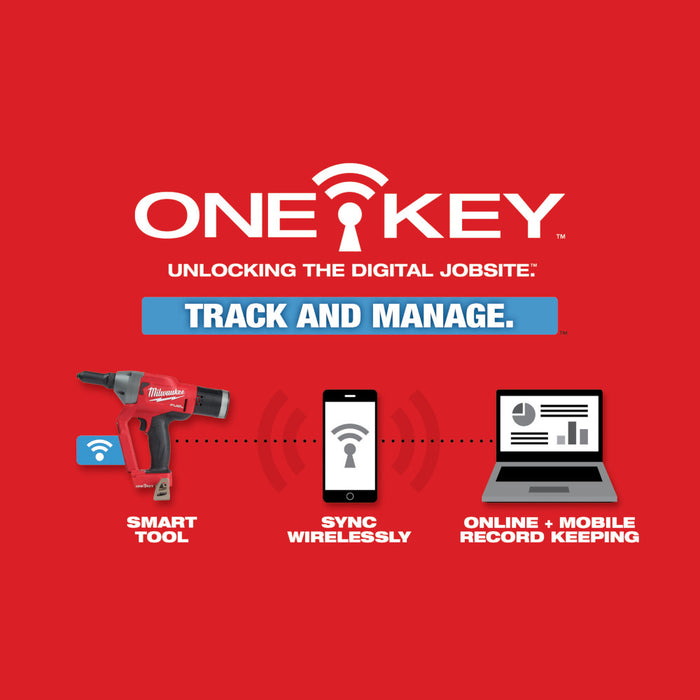

- ONE-KEY™ Compatible: Ability to Track and Manage tools for increased productivity and investment protection
- Premium rubber over-mold withstands corrosive materials and provides increased comfort when in use
- Compatible with all M18™ batteries and chargers
Technical Specifications
| FUEL™ | Yes |
| Material | Metal |
| Rivets Used | Blind |
| Swivel Head | No |
| Battery Size | 18 Volt |
| Color Finish | Black; Red |
| Motor Type | POWERSTATE™ Brushless |
| Case Included | No |
| Grip Material | Rubber |
| Product Type | Cordless Rivet Tool |
| Rivet Material | Stainless Steel; Steel; Aluminum |
| Corded Cordless | Cordless |
| Handle Material | Rubber |
| Rivets Included | No |
| Badge Branding | FUEL™ |
| Battery System | M18™ |
| Housing Material | Aluminum |
| Includes Charger | No |
| Rivet Stem Catch | Yes |
| Soft Grip Handle | Yes |
| Battery Voltage | 18 |
| Handle Length (in) | 4.5 |
| Stroke Length (in) | 1.18 |
| ANSI Safety Listing | No |
| Battery Composition | Lithium-Ion (Li-ion) |
| Extensions Included | No |
| Included Accessories | Nose Piece Wrench, Retention Nose Piece 4 Pack, Mandrel Collector, Hanging Ring, Belt Clip |
| ONE-KEY™ Enabled | Yes |
| Maximum Pulling Force | 4500 |
| Power Tool Branding | FUEL™ |
| Compatible Rivet Sizes | 3/16" (4.8mm), 7/32" (6.0mm), 1/4" (6.4mm) and 9/32" (7.0mm) |
| Mandrel Wrench Included | Yes |
| High/Low Power Adjustment | No |
| Powered Tool Power Source | Electric - Cordless |
| Rivet Gun Nose Reach (in) | 3.13 |
| Lockbolt Tips Compatibility | N/A |
| Number of Batteries Required | 1 |
| ONE-KEY™ Adaptive Features | Lock; Manage; Track |
| Weight Battery Installed (lb) | 5.6 |
| Batteries Included / Bare Tool | Bare Tool |
| Weight Excluding Battery (lb) | 4.66 |
| Rivet Gun Mandrel Sizes Included | 3/16", 7/32", 1/4", 9/32" |
| ONE-KEY™ Baseline (Track, Manage, Lock) | Yes |
Product Dimensions
| Packaged Length | 14 in |
| Packaged Width | 10.8 in |
| Packaged Height | 4.3 in |
| Assembled Width | 2.5 in |
| Assembled Height | 9.5 in |
| Assembled Depth | 12.5 in |
