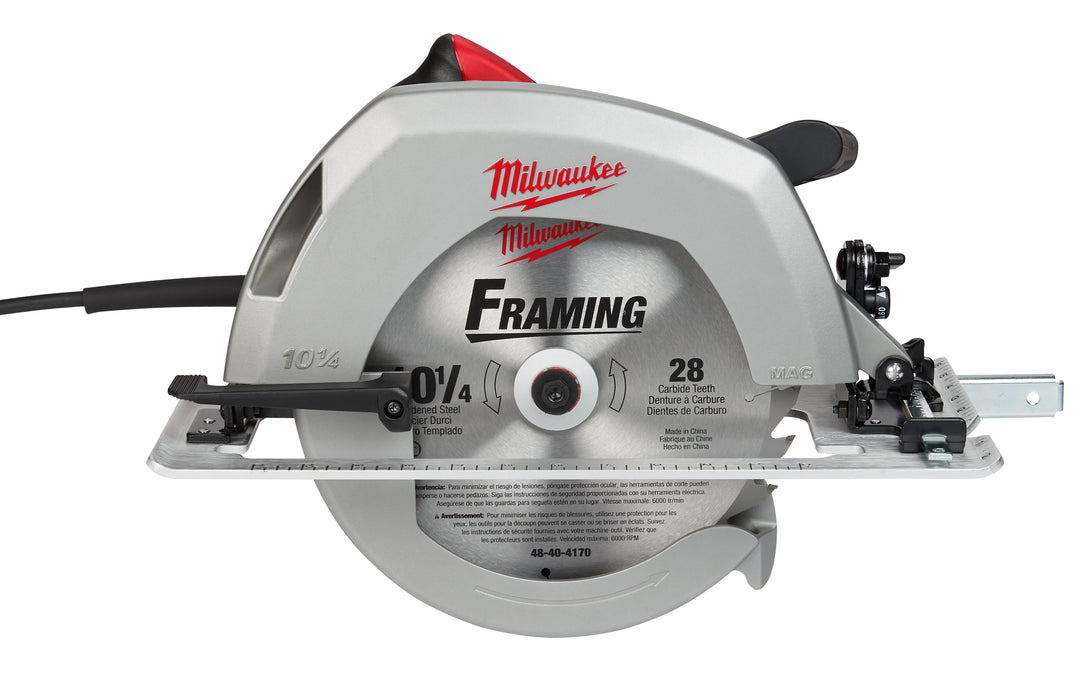

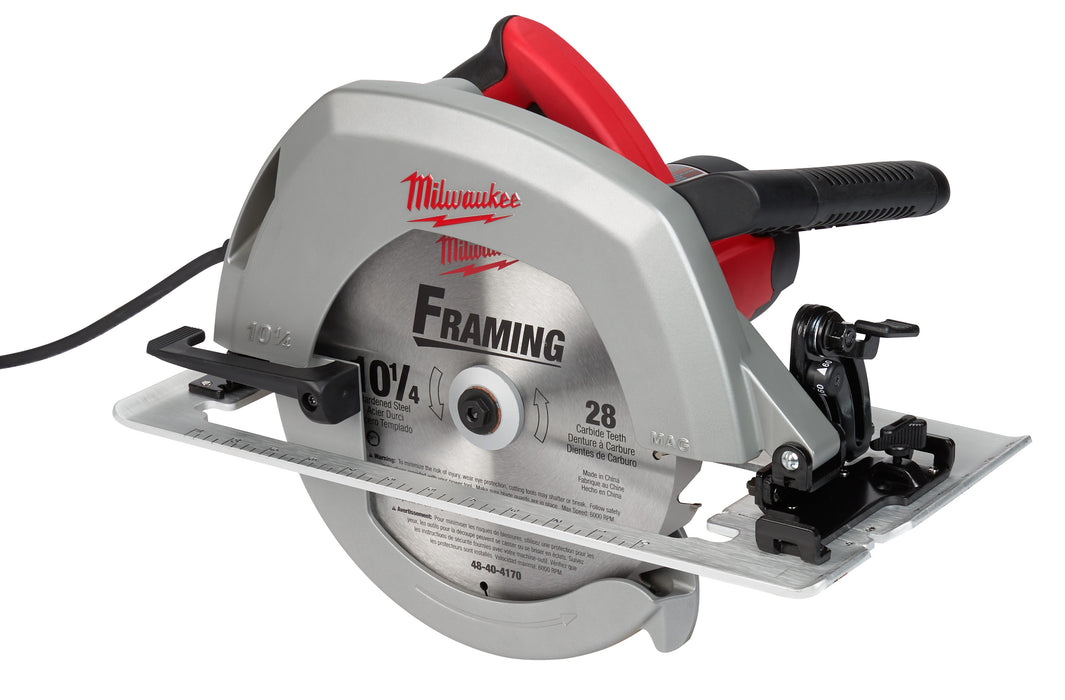

Milwaukee 10-1/4" Circular Saw
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM
The 6470-21, 10-1/4 in. circular saw is built with the power and capacity to handle the most extreme cutting applications. The powerful 15 amp, 5,200 RPM motor delivers maximum power for high performance cutting without bogging down under load. An aircraft aluminum shoe will not bend or warp in extreme cutting applications. The electric brake increases productivity by stopping the blade in seconds. These heavy duty features combined with the 3-13/16 in. depth of cut capacity and 60° bevel capacity make the 6470-21 the most popular 10-1/4 in. circular saw in the industry.
- Powerful 15 amp, 5,200 RPM motor – delivers maximum power for cutting without bogging down under load
- 3-13/16 in. depth of cut capacity – provides enough capacity to cut 4 in. material in a single pass
- 60° bevel capacity – provides maximum bevel capacity for cutting roof rafters, trusses and joists
- Electric brake - increases productivity by stopping the blade in seconds
- Aircraft aluminum shoe – will not bend or warp in extreme cutting applications
Technical Specifications
| Guide(s) | Rip Fence |
| Dust Port | No |
| Saw Drive | Direct Drive |
| UL Listed | Yes |
| Bevel Stop | Yes |
| Blade Type | Wood Cutting Blade |
| ETL Listed | Yes |
| Width (in) | 17 |
| Dust Blower | No |
| Height (in) | 15.5 |
| Length (in) | 13.5 |
| Voltage (V) | 120 |
| Wattage (W) | 2300 |
| Amperage (A) | 15 |
| Spindle Lock | Yes |
| CSA Certified | No |
| Shoe Material | aluminum |
| Blade Location | Right |
| Blade Material | Steel |
| Color / Finish | red, black, grey |
| Fence Included | Yes |
| Variable Speed | No |
| Arbor Size (in) | 0.625 |
| Blades Included | No |
| Dust Collection | No |
| Horsepower (hp) | 3.1 |
| Cord Length (in) | 144 |
| Depth Adjustment | Yes |
| Housing Material | metal, plastic |
| MFG Part # (OEM) | 6470-21 |
| Main Handle Type | D-Ring |
| Package Contents | Circular Saw , Rip Fence, Case |
| Cordless / Corded | Corded |
| Bevel Capacity (°) | 60 |
| Electric Motor Brake | Yes |
| Blade Wrench Included | Yes - Loose |
| Integrated Work Light | Not Featured |
| Manufacturer Warranty | 5 Years |
| Maximum RPM - No Load | 5200 |
| Net Tool Weight (lbs) | 41 |
| Integrated Laser Guide | No |
| Integrated Rafter Hook | Not Featured |
| Saw Blade Diameter (in) | 10¼ in |
| Product Storage Included | Case |
| Tool-Less Blade Changing | No |
| Powered Tool Power Source | Electric - Corded |
| External Motor Brush Access | No |
| Maximum Cut Depth @ 45° (in) | 2.75 |
| Maximum Cut Depth @ 90° (in) | 3.8 |
| Preset Bevel Angle Detents (°) | Not Featured |
Product Dimensions
| Packaged Length | 17.5 in |
| Packaged Width | 16.3 in |
| Packaged Height | 14.4 in |
| Assembled Width | 15.5 in |
| Assembled Height | 13.5 in |
| Assembled Depth | 17 in |
