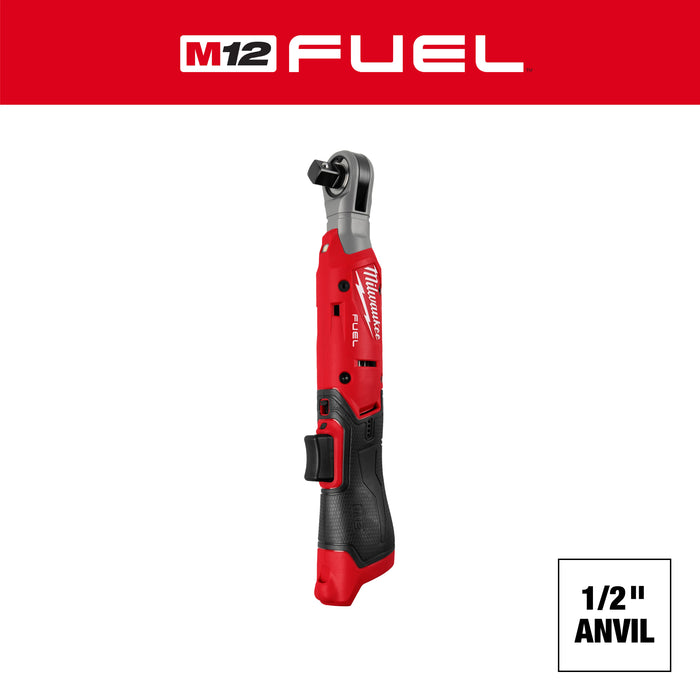

Milwaukee M12 FUEL 1/2" Ratchet - Tool Only

Milwaukee SKU MIL305420 Manufacturer Part #. 3054-20
Pre-order
Original price $318.00 - Original price $318.00
Original price $318.00
$318.00
$318.00 - $318.00
Current price $318.00

Return Policy

Please make sure to read our Return Policy.

Standard Shipping

Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.

In-Store Pick Up

Monday-Friday: 9AM-5PM

The MILWAUKEE® M12 FUEL™ 1/2" Ratchet redefines productivity, capability, & comfort for users looking for the ultimate cordless ratchet to tackle any job. Our new POWERSTATE™ Brushless outer rotor motor delivers the BEST COMBINATION OF POWER AND SPEED with 80 ft-lbs of torque to breakaway stubborn fasteners, & 300 RPM to remove and install fasteners at higher rates of speed. This solution also delivers the MOST COMPACT HEAD & BODY SIZE to allow users full body access into tight spaces, maintaining a 3/4" head profile & at only 1.7 lbs bare tool, without sacrificing durability. The M12 FUEL™ Ratchet provides users UNMATCHED COMFORT with a dedicated contoured grip & reduces fatigue during a full day of wrenching. Also featuring a new to world modular trigger cap, this will allow users to switch between various button or paddle trigger configurations for customizable comfort. Equipped with a targeted LED work light, battery isolation system, and & optimized forward reverse shuttle – this ratchet tackles core user frustrations and delivers uncompromising performance.

  • Up to 80 ft-lbs of max torque
  • 300 RPM for faster application speeds
  • Most Compact head & body size for increased access to tight spaces

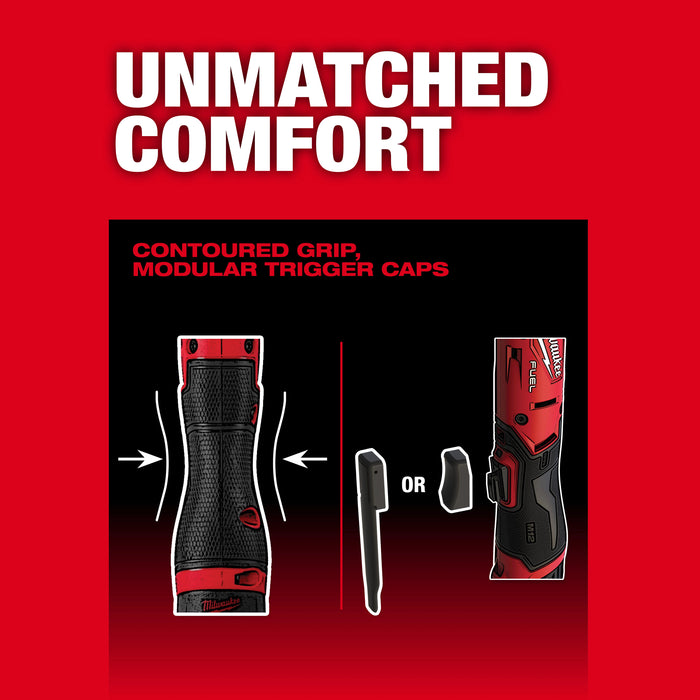

  • Contoured Grip for Unmatched comfort

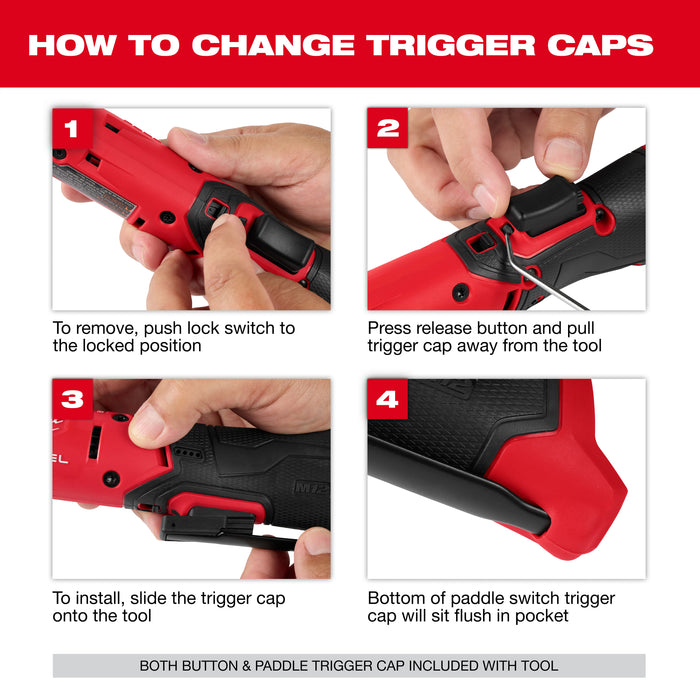

  • Modular trigger for personalized grip point - button & paddle cap included
  • Raised F/R shuttle for easier direction changes
  • Integrated Grease Port for Self Lubrication
  • Metal reinforced housing for increased durability
  • POWERSTATE™ Brushless Outer Rotor Motor for greatest performance
  • REDLINK PLUS™ intelligence prevents damage to the tool & battery due to overloading or overheating
  • Bi-Directional Motor Firmware for consistent breakaway torque
  • Targeted LED light for greater illumination
  • Part of the M12™ System featuring 150+ Tools

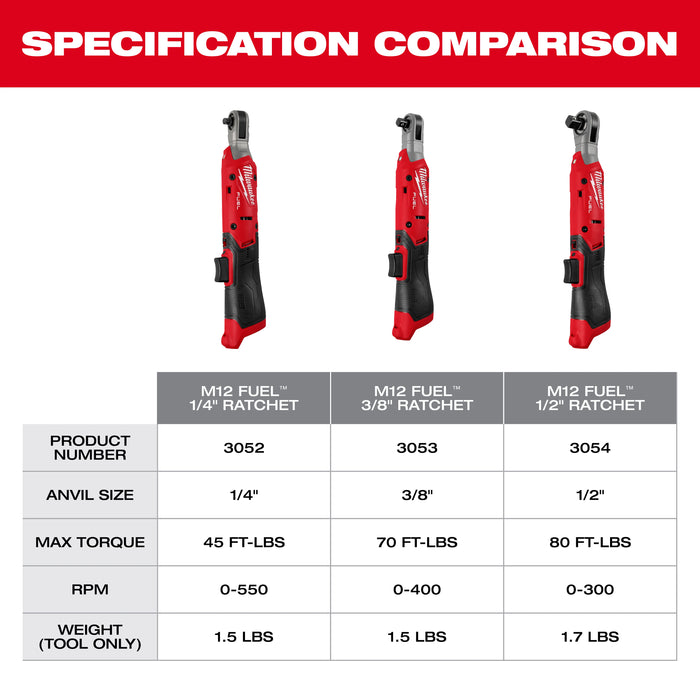

Technical Specifications
FUEL™ Yes
Material Glass Filled Nylon; Metal
Anvil Size 1/2 in
Anvil Type Ball Detent
Motor Type POWERSTATE™ Brushless
Maximum RPM 300
Product Type Cordless Ratchet Wrench
Head Width (in) 1.45
Badge Branding FUEL™
Battery System M12™
Battery Voltage 12
Brushless Motor Yes
Head Profile (in) 0.75
ONE-KEY™ Enabled No
Power Tool Branding FUEL™
Maximum Torque (ft-lbs) 80
Batteries Included / Bare Tool Bare Tool
Weight Excluding Battery (lb) 1.7
Rotations Per Minute Range (RPM) 0-300
Product Dimensions
Packaged Length 2.87 in
Packaged Width 2.17 in
Packaged Height 12.76 in
Assembled Width 1.6 in
Assembled Height 12.2 in
Assembled Depth 2.2 in
Includes
  • (1) M12 FUEL 1/2" Ratchet
  • (1) Modular Button Cap
  • (1) Modular Paddle Cap
