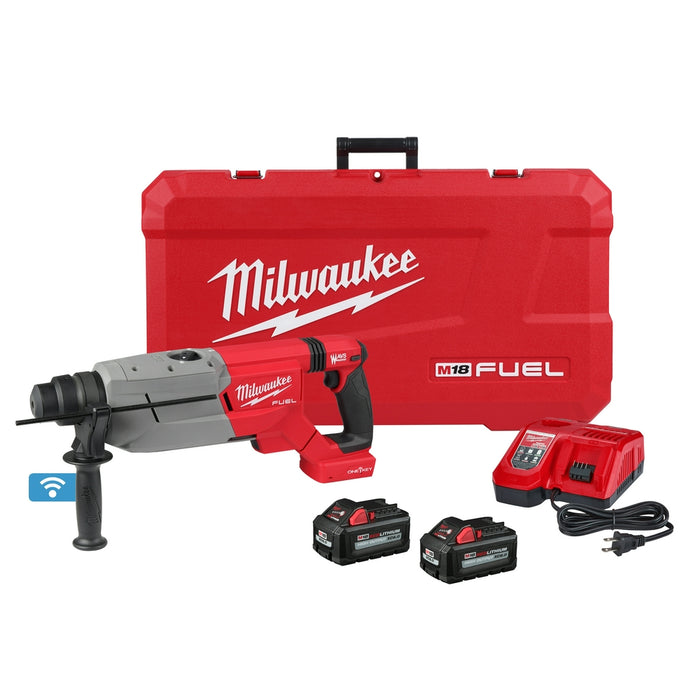

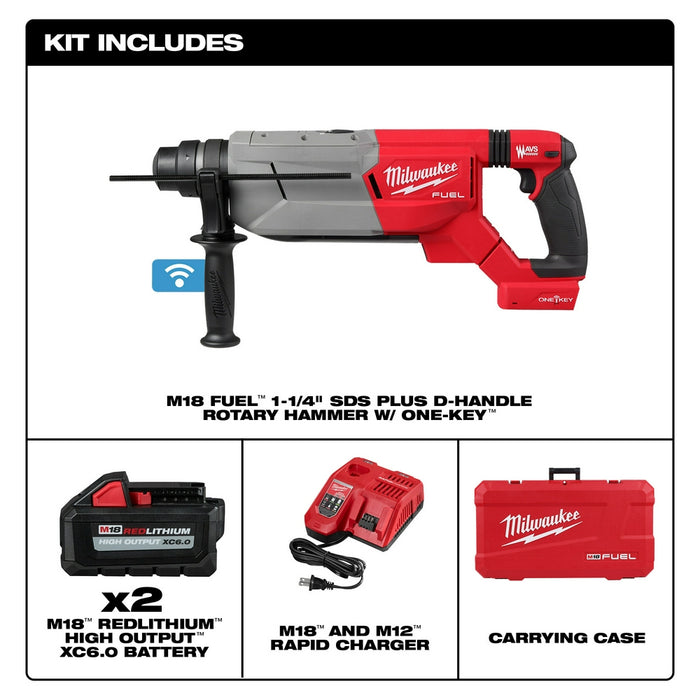

Milwaukee M18 FUEL 1-1/4” SDS Plus D-Handle Rotary Hammer Kit w/ ONE-KEY
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM

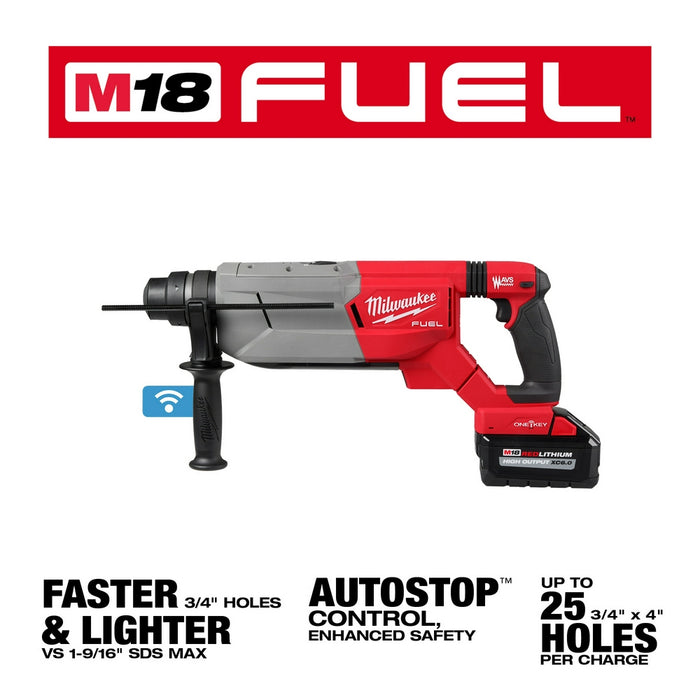

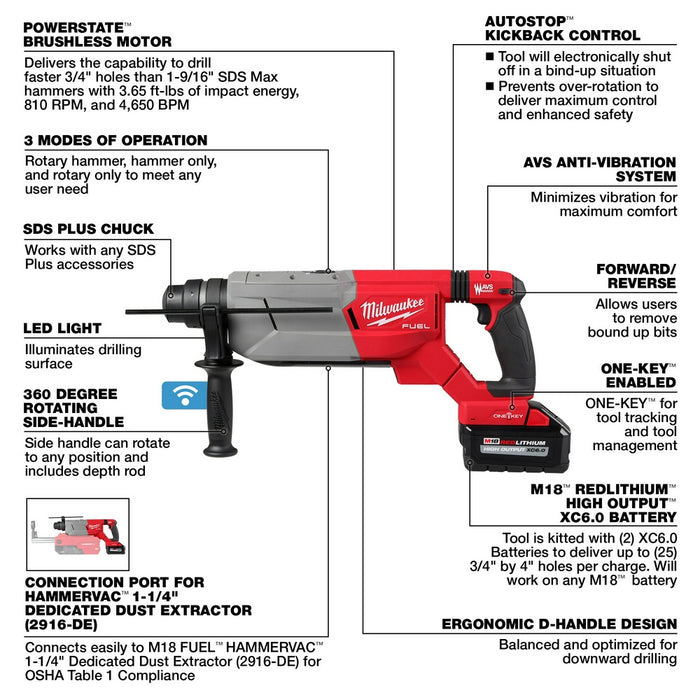

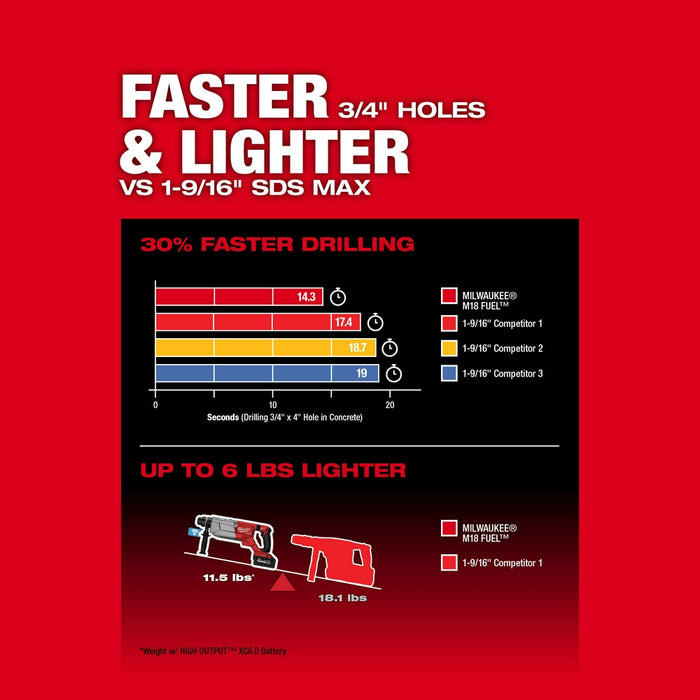

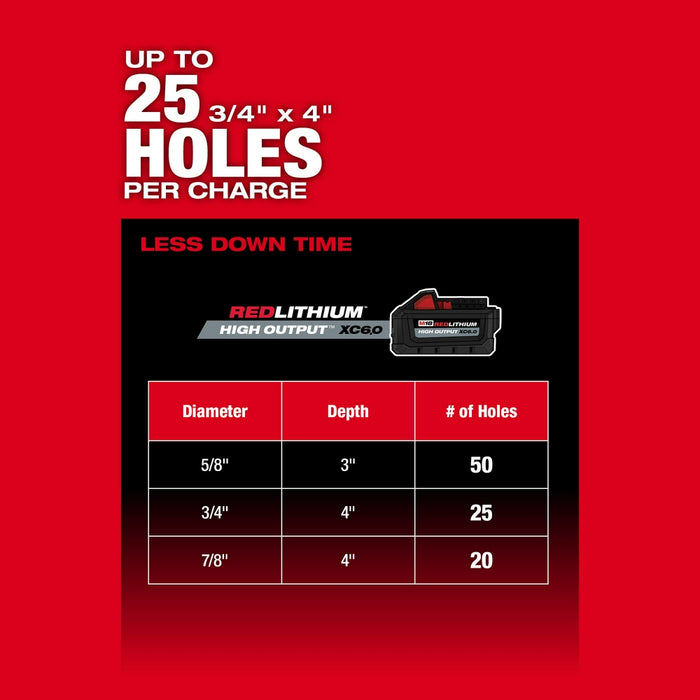

MILWAUKEE® M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with MILWAUKEE® M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. The in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with MILWAUKEE® M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. The AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries.
- POWERSTATE™ Brushless Motor delivers maximum power and long motor life
- REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
- The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
- 3.65 ft-lbs Impact Energy
- ONE-KEY™ technology allows for tracking, tool security, and inventory management
- AVS Anti-Vibration System: Minimizes vibration for maximum comfort
- 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
- 810 RPM
- 4,650 BPM

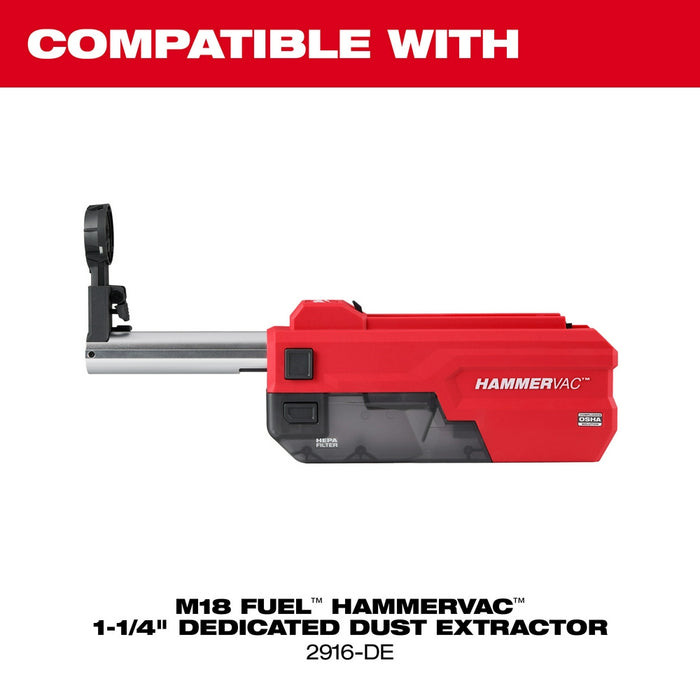

- Pairs with 2916-DE HAMMERVAC™ 1-1/4” Dedicated Dust Extractor
- Part of the M18™ system, featuring over 200+ solutions
Technical Specifications
| Max RPM | 810 |
| Condition | New |
| FUEL™ | Yes |
| UL Listed | Yes |
| Drill Type | Rotary Hammer Drilll |
| Material | Metal |
| Handle Type | Side Handle |
| Side Handle | Yes |
| Battery Size | 18 Volt |
| Battery Type | Lithium Ion |
| Chuck Design | Not Applicable |
| Chuck Type | SDS Plus |
| Color Finish | Black; Gray; Red |
| Motor Type | POWERSTATE™ Brushless |
| CSA Certified | No |
| Case Included | Yes |
| Depth Control | Adjustable |
| Handle Type | D-Handle |
| Maximum RPM | 810 |
| Switch Type | Trigger |
| Power Source | Cordless |
| Product Type | Cordless Rotary Hammer |
| AUTO STOP ™ | Yes |
| Corded Cordless | Cordless |
| Handle Material | Plastic with Rubber Overmold |
| Type of Modes | Rotary Hammer, Drill Only, Hammer Only, Chisel Rotation |
| Badge Branding | FUEL™ |
| Battery System | M18™ |
| Housing Material | Plastic |
| Includes Charger | Yes |
| Lock-on Switch | No |
| Soft Grip Handle | Yes |
| Variable Speed | Yes |
| Battery Voltage | 18 |
| Brushless Motor | Yes |
| Chisel Rotation | Yes |
| Integrated Light | Yes |
| Reverse Function | Yes |
| Solid Bit Capacity | N/A |
| Battery Composition | Lithium-Ion (Li-ion) |
| Core Bit Capacity | 3" |
| LED Charge Indicator | Yes |
| ONE-KEY™ Enabled | Yes |
| Power Tool Branding | FUEL™ |
| Blows Per Minute (bpm) | 4650 |
| Impact Energy (ft-lbs) | 3.65 |
| Battery Quantity Included | 2 |
| Dust Extractor Included | No |
| Powered Tool Power Source | Electric - Cordless |
| Rotary Hammer Size (in) | 1-1/4" |
| Thin Wall Core Bit Capacity | Yes |
| Number of Batteries Included | 2 |
| Anti Vibration System (AVS) | Yes |
| Weight Battery Installed (lb) | 11.5 |
| Battery Charger Input Voltage | 18 |
| Weight Excluding Battery (lb) | 9.2 |
| Maximum Concrete Bit Size (in) | 1.25 |
| VACLINK™ Wireless Dust Control | No |
Product Dimensions
| Packaged Length | 6.54 in |
| Packaged Width | 33.47 in |
| Packaged Height | 18.54 in |
| Assembled Width | 3.6 in |
| Assembled Height | 7.3 in |
| Assembled Depth | 18.3 in |
