Milwaukee SHOCKWAVE Impact Duty Carbide Hammer Drill Bit with POWER TIP
MilwaukeeSKU Manufacturer Part #. 48-20-9000
Manufacturer Part #. 48-20-9005
Manufacturer Part #. 48-20-9010
Manufacturer Part #. 48-20-9006
Manufacturer Part #. 48-20-9001
Manufacturer Part #. 48-20-9011
Manufacturer Part #. 48-20-9016
Manufacturer Part #. 48-20-9012
Manufacturer Part #. 48-20-9021
Manufacturer Part #. 48-20-9030
Manufacturer Part #. 48-20-9040
Manufacturer Part #. 48-20-9045
Manufacturer Part #. 48-20-9022
Manufacturer Part #. 48-20-9031
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Availability:
in stock, ready to be shipped
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
The MILWAUKEE® SHOCKWAVE™ Impact Duty Carbide Hammer Drill Bits are designed with sharpened carbide to deliver up to 9x longer life and 4x faster drilling into concrete. The POWER TIP™, available in sizes 3/8" and above, is designed with dynamic cutting edges and a chip breaker for increased productivity and easier drilling from start to finish. Engineered with precision ground carbide, these bits deliver faster starts and less walking in concrete, brick, and block. Wide flute design removes dust faster, reducing heat and delivering more holes per charge. Equipped with a ¼” Hex Shank, Milwaukee® SHOCKWAVE™ Impact Duty Carbide Hammer Drill Bits are the ideal solution for drilling in masonry materials with both impacts and hammer drills/drivers. Available in diameters up to ½ inch.

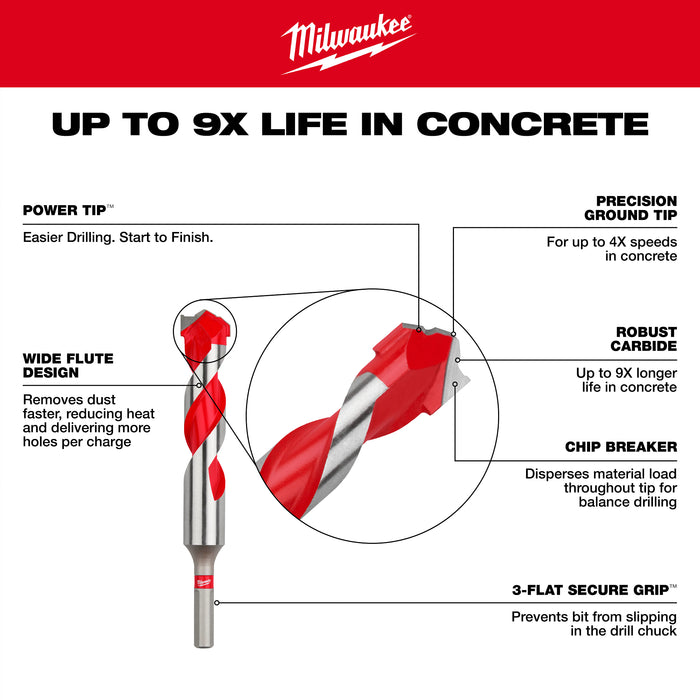

POWER TIP™ with dynamic cutting edges provides ultimate material disruption for increased productivity
Robust carbide for up to 9x life in concrete
Precision ground carbide tip design for up to 4x faster speeds in concrete
Easier Drilling. Start to Finish.
Chip Breaker disperses material load throughout tip for balanced drilling experience
Sharpened carbide edges for faster starts and less bit walking
SHOCKWAVE™ Impact Duty engineered for hammer drills and impacts
Wide flute design for fast, efficient dust removal and more holes per charge

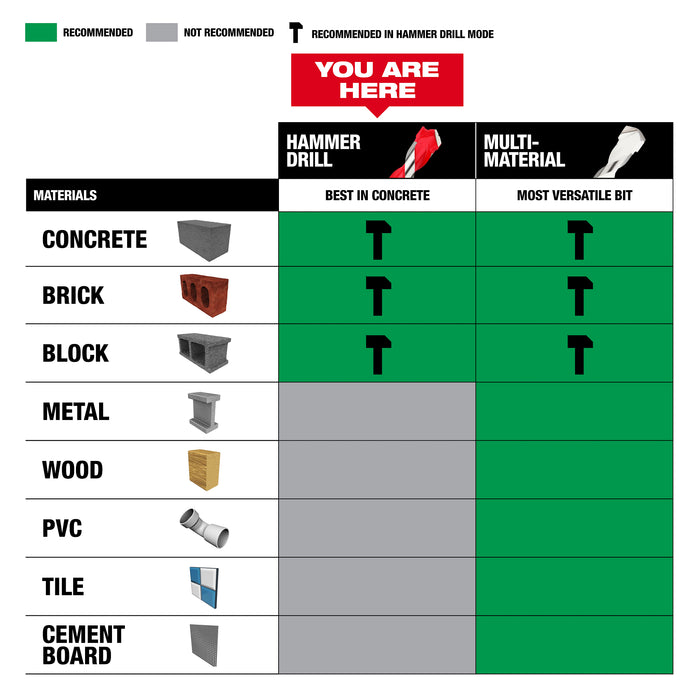

For use in concrete, brick, and block
¼’” Hex shank for added tool versatility
SHOCKWAVE™ Impact Duty hammer drill bits available in diameters 1/8” to 1/2"
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
3.5
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
1/8 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Flute Length (in)
2
Shank Length (in)
1
Overall Bit Length
3.5
Usable Length (in)
1.5
Material Application
Block; Brick; Concrete
Drilling Depth (in)
1.5
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Minimum Chuck Size Required
1/4
Recommended Safety Equipment
Safety Glasses, Mask
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.03 in
Packaged Width
1.87 in
Packaged Height
5.89 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
3.5 in
Includes
(1) 1/8" x 2" x 3-1/2" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9000)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
4
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
3/16 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
2
Shank Length (in)
1.5
Overall Bit Length
4"
Usable Length (in)
2
Material Application
Block; Brick; Concrete
Drilling Depth (in)
2
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.25 in
Packaged Width
1.88 in
Packaged Height
5.89 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
4 in
Includes

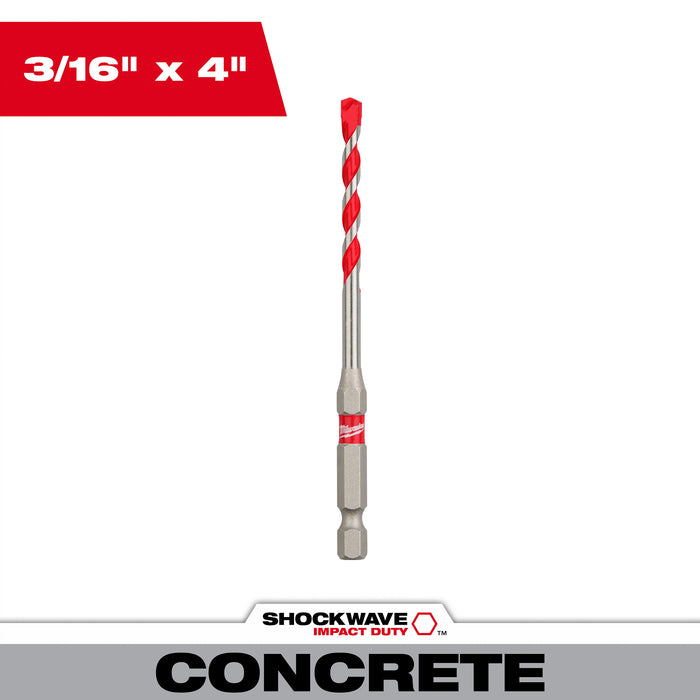

(1) 3/16" x 2" x 4" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9005)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
4
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
1/4 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
2
Shank Length (in)
1.5
Overall Bit Length
4"
Usable Length (in)
2
Material Application
Block; Brick; Concrete
Drilling Depth (in)
2
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.25 in
Packaged Width
1.88 in
Packaged Height
5.89 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
4 in
Includes
(1) 1/4" x 2" x 4" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9010)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
3/16 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
4
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Minimum Chuck Size Required
1/4
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.25 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
6 in
Includes
(1) 3/16" x 4" x 6" SHOCKWAVE Impact Duty™ Carbide Hammer Drill Bit
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
5/32 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.25 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
6 in
Includes

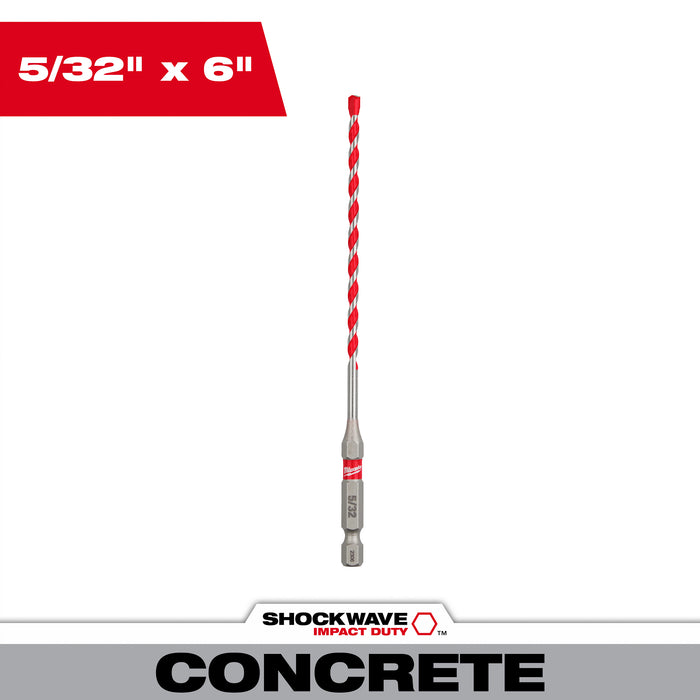

(1) 5/32" x 4" x 6" SHOCKWAVE Impact Duty™ Carbide Hammer Drill Bit
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
1/4 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.25 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
6 in
Includes
(1) 1/4" x 4" x 6" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9011)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
5/16 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.31 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.31 in
Assembled Height
0.31 in
Assembled Depth
6 in
Includes
(1) 5/16" x 4" x 6" SHOCKWAVE Impact Duty™ Carbide Hammer Drill Bit
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
No
Bit Length
12
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
1/4 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
10
Shank Length (in)
1.5
Overall Bit Length
1/2"
Usable Length (in)
10
Material Application
Block; Brick; Concrete
Drilling Depth (in)
10
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.25 in
Packaged Width
1.87 in
Packaged Height
13.87 in
Assembled Width
0.25 in
Assembled Height
0.25 in
Assembled Depth
12 in
Includes
(1) 1/4" x 10" x 12" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9012)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
Yes
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
3/8 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.38 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.38 in
Assembled Height
0.38 in
Assembled Depth
6 in
Includes
(1) 3/8" x 4" x 6" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9021)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
Yes
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
1/2 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.5 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.5 in
Assembled Height
0.5 in
Assembled Depth
6 in
Includes
(1) 1/2" x 4" x 6" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9030)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
Yes
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
3-Flat
Bit Diameter
5/8 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
3-Flat
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
3/8 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.375
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
No
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.63 in
Packaged Width
1.88 in
Packaged Height
7.97 in
Assembled Width
0.63 in
Assembled Height
0.63 in
Assembled Depth
6 in
Includes

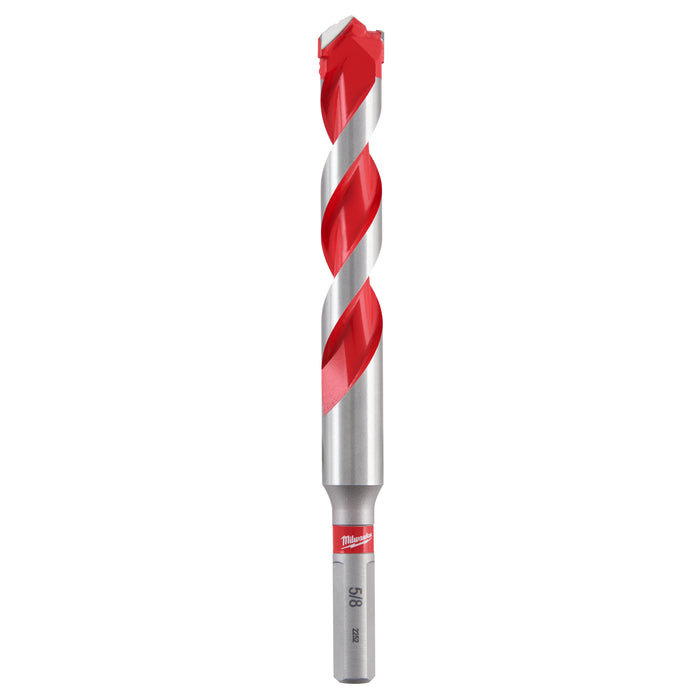

(1) 5/8" x 4" x 6" Carbide Hammer Drill Bit
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
Yes
Bit Length
6
Material
Carbide Tipped
Color Coded
No
Shank Style
3-Flat
Bit Diameter
3/4 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
3-Flat
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
3/8 in
Flute Length (in)
4
Shank Length (in)
1.5
Overall Bit Length
6"
Usable Length (in)
4
Material Application
Block; Brick; Concrete
Drilling Depth (in)
4
Shank Diameter Inches
0.375
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
No
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.75 in
Packaged Width
1.88 in
Packaged Height
8.29 in
Assembled Width
0.75 in
Assembled Height
0.75 in
Assembled Depth
6 in
Includes
(1) 3/4" x 4" x 6" Carbide Hammer Drill Bit(48-20-9045)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
Yes
Bit Length
12
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
3/8 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
10
Shank Length (in)
1.5
Overall Bit Length
1/2"
Usable Length (in)
10
Material Application
Block; Brick; Concrete
Drilling Depth (in)
10
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.38 in
Packaged Width
1.87 in
Packaged Height
13.87 in
Assembled Width
0.38 in
Assembled Height
0.38 in
Assembled Depth
12 in
Includes
(1) 3/8" x 10" x 12" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9022)
Technical Specifications
Item
Hammer Drill Bit
Style
Drilling
Bit Type
Percussion
Power Tip
Yes
Bit Length
12
Material
Carbide Tipped
Color Coded
No
Shank Style
Hex
Bit Diameter
1/2 in
Bit Material
Carbide Tipped
Self Feeding
No
Shank Design
Hex
Case Included
No
Chuck Fitment
Standard Chuck
Drill Bit Type
Hammer Drill Bit
Product Type
Masonry Drill Bit
Number of Flutes
2
Package Quantity
1
Set / Individual
Individual
Shank Diameter
1/4 in
Flute Length (in)
10
Shank Length (in)
1.5
Overall Bit Length
1/2"
Usable Length (in)
10
Material Application
Block; Brick; Concrete
Drilling Depth (in)
10
Shank Diameter Inches
0.25
Single / Double Ended
Single
Number of Cutter Heads
2
Hammer and Multi-Bit Type
Hammer Drill Bits
Recommended Safety Equipment
Safety Glasses, Mask
Quick Change Impact Driver Bit
Yes
Etched / Stamped Size Identification
Yes
Product Dimensions
Packaged Length
0.5 in
Packaged Width
1.87 in
Packaged Height
13.88 in
Assembled Width
0.5 in
Assembled Height
0.5 in
Assembled Depth
12 in
Includes
(1) 1/2" x 10" x 12" SHOCKWAVE Impact Duty Carbide Hammer Drill Bit(48-20-9031)
