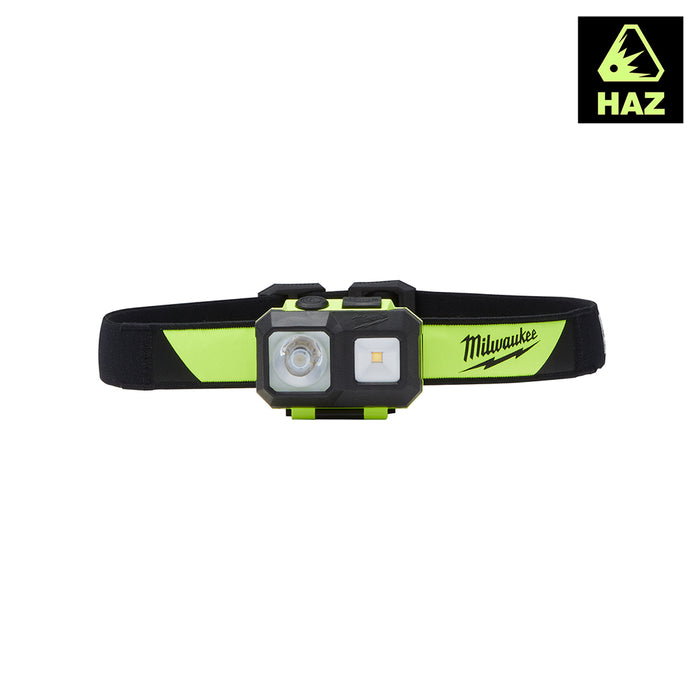

Milwaukee Intrinsically Safe C I, II, III / D 1 Spot/Flood Headlamp
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM

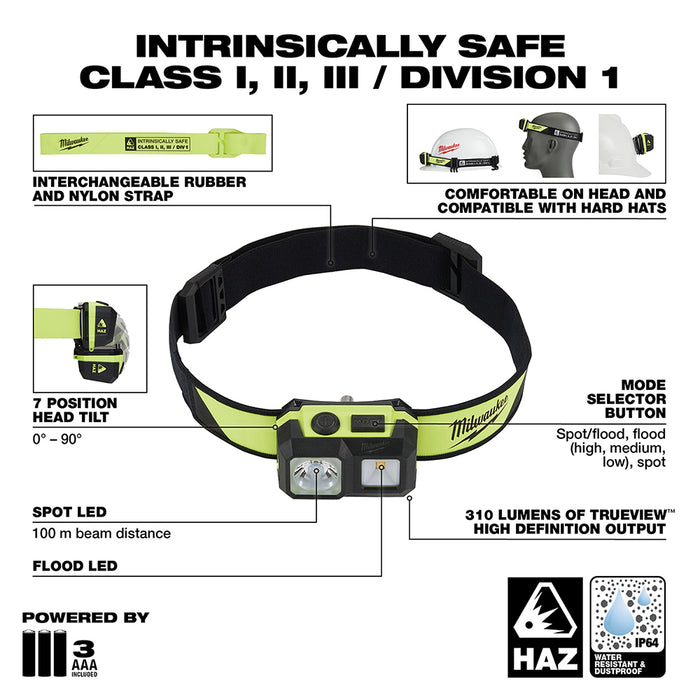

The MILWAUKEE® Intrinsically Safe Class I, II, & III / Division 1 Spot/Flood Headlamp sets a new standard for hazardous location personal lighting, delivering GREATER VISIBILITY, HIGHER OUTPUT, and NO COMPROMISE to size or safety. The headlamp is rated for Classes I, II, and III, Division 1, delivers 310 Lumens of TRUEVIEW™ High Definition Output, and can reach a beam distance of up to 100 meters. With a lightweight, compact design, there is no compromise to size for output and performance. Designed with the safety manager in mind, this hi-visibility headlamp has explicit on-tool and on-strap intrinsically safe logos for easy identification, even at a distance. Powered by 3 AAA batteries, this spot and flood headlamp provides up to 40 hours of run time and has 5 output modes to manage brightness and run time. This head torch is IP64 rated, making it dust-proof and water-resistant. It includes a rubber strap optimized for hard hat use, a nylon strap for bare head use, and a Dual Lock™ adhesive to connect it straight to a hard hat. The LED headlamp also comes with four hard hat clips and three AAA batteries. The intrinsically safe headlamp allows users to direct the pivoting light head using seven adjustable positions and is covered by a MILWAUKEE® limited lifetime warranty.
- 310 Lumens of TRUEVIEW™ High Definition Output
- 100m of Beam Distance in Spot Mode
- Up to 40 hours of run-time on Low Mode
- Compact, Lightweight design
- Includes a Rubber Strap for hard hat use and a Nylon Strap for bare head use

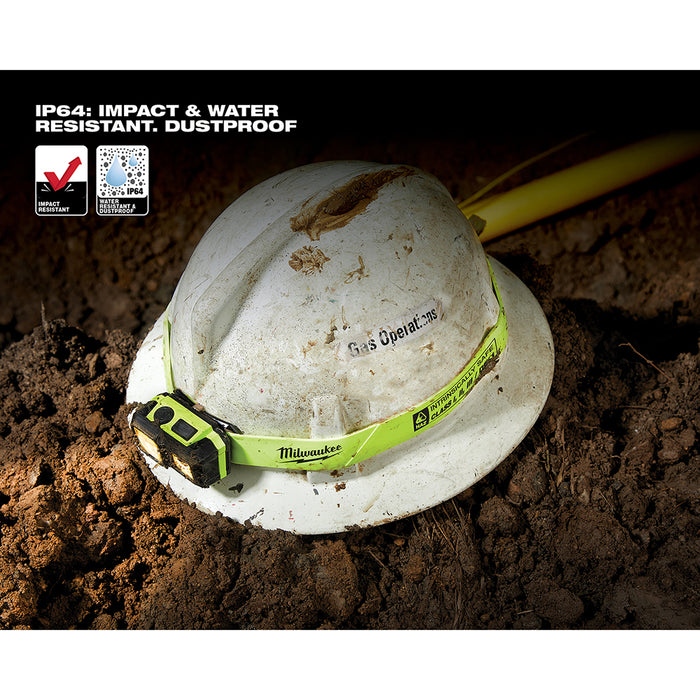

- IP64 Rated: Dustproof and Water Resistant
- Powered by 3 AAA Batteries (included)

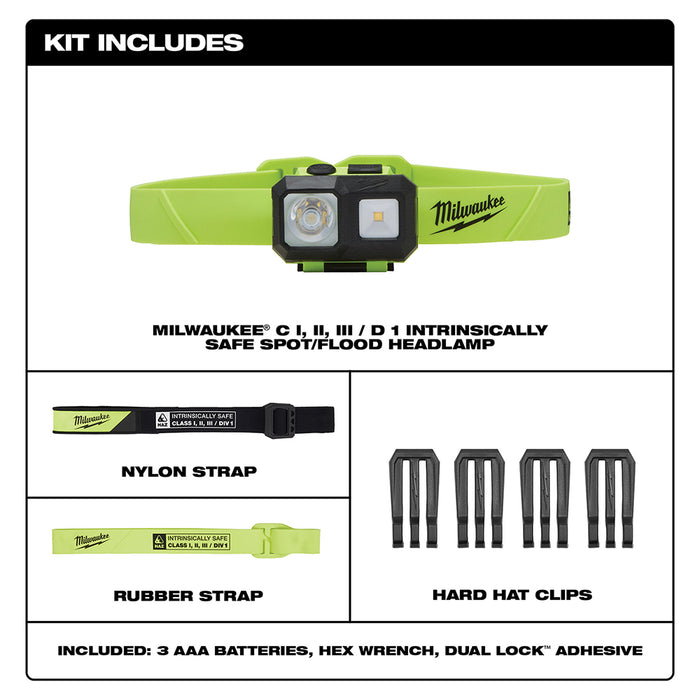

- Includes: Milwaukee Intrinsically Safe C I, II, III/D I Spot/Flood Headlamp, Rubber Strap, Nylon Strap, Dual-Lock Adhesive, (4) Hard Hat Clips, (3) AAA Batteries

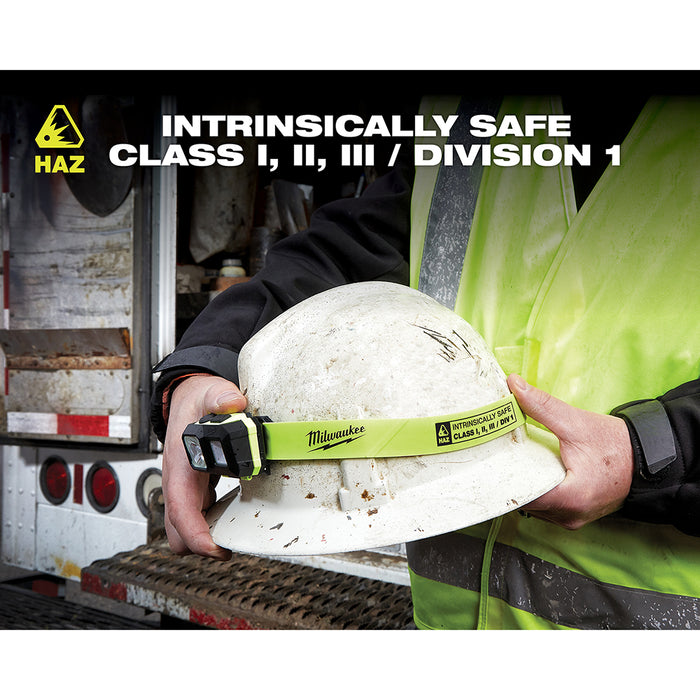

- Intrinsically Safe C I, II, III / Div. 1
- Dual Lock™ Adhesive for a strapless option to connect straight to a hard hat
- Powered by (3) AAA Batteries (included)Limited lifetime warranty (excludes batteries)
- Includes (4) Universal Hard Hat Clips
Technical Specifications
| Bulb Type | LED |
| Focus Type | Flood |
| Material | Plastic |
| USB Port | Yes |
| Waterproof | No |
| Battery Size | AAA |
| Color Finish | Yellow; Black |
| Power Supply | Battery |
| Rechargeable | No |
| Safety Rated | I, Div. 1 |
| Lens Material | Polycarbonate |
| Switch Type | Push Button |
| USB Power Out | Not Applicable |
| Maximum Lumens | 310 |
| Pivoting Light | Yes |
| Product Type | Head Lamp |
| Corded Cordless | Cordless |
| Drop Rating (m) | 3 |
| Flashlight Type | Headlamp |
| Light Beam Type | Dual |
| Light Bulb Type | LED |
| Lumens Quantity | 310 |
| Number of Bulbs | 2 |
| Adjustable Strap | Yes |
| Housing Material | Plastic |
| Run Time on High | 4 |
| Battery Voltage | 1.5 |
| Beam Distance (m) | 100 |
| Impact Resistance | Yes |
| Replacement Lamps | No |
| Batteries Included | Yes |
| Ingress Protection | IP64 |
| Light Output Modes | High; Low; Medium |
| Battery Composition | Alkaline |
| Battery Manufacturer | Duracell |
| Battery Run Time (hr) | 40 |
| Low Mode Battery Life | 40 Hours |
| High Mode Battery Life | 4 Hours |
| Product Style Fastenal | Battery Powered-Cordless |
| Medium Mode Battery Life | 10 Hours |
| Water Penetration Rating | IPX4 |
| Battery Quantity and Size | (3) AAA |
| Special Light Output Mode | No Special Light Output |
| Runtime and Output by Mode | Spot/Flood Hybrid: 310 Lumens - 4hrs, Spot High: 155 Lumens - 8hrs, Flood High: 235 Lumens - 6hrs, Flood Medium: 155 Lumens - 10hrs, Flood Low: 25 Lumens - 40hrs |
| Flood Low Mode Battery Life | 40 Hours |
| Flood High Mode Battery Life | 6 Hours |
| Number of Batteries Required | 3 |
| Battery Model and Part Number | Alkaline Battery |
| Weight Battery Installed (lb) | 0.18 |
| Flood Medium Mode Battery Life | 10 Hours |
| Hazardous Location Specification | Yes |
| Battery Life by Mode and Lumen Output | Spot/Flood Hybrid: 310 Lumens - 4hrs, Spot High: 155 Lumens - 8hrs, Flood High: 235 Lumens - 6hrs, Flood Medium: 155 Lumens - 10hrs, Flood Low: 25 Lumens - 40hrs |
Product Dimensions
| Packaged Length | 1.57 in |
| Packaged Width | 3.94 in |
| Packaged Height | 9.65 in |
| Assembled Width | 2.4 in |
| Assembled Height | 1.5 in |
| Assembled Depth | 1.79 in |
