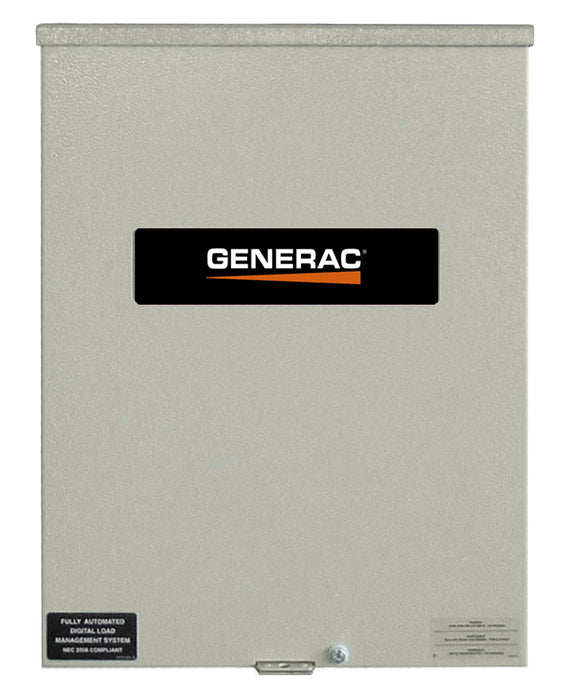

Generac 100A 1-Phase Automatic Transfer Switch
This item is oversized and/or overweight and does not qualify for free shipping. Delivery surcharges may apply at checkout. Local delivery only.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM
Featuring a NEMA 3R aluminum enclosure and Heavy Duty Generac Contactor, this Service Entrance switch is designed for use with single phase generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.
This switch features a 5 year limited warranty.
Service Entrance Rated
A service entrance disconnect is a device that interrupts excessive voltage and allows for manually disconnecting your home or business from the electrical utility.
Intelligent Load Management
Manage up to four HVAC loads with no additional hardware needed, providing a more efficient system, and allowing you to reduce the size of the generator needed to protect your home.
NEMA 3R Outdoor Rated Enclosure
Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice, and debris.
Technical Specifications
| Transfer Method | Automatic |
| Pre Wired | No |
| Load Shedding | Built-In |
| Circuited Quantity | 0 |
| Whole House | No |
| Voltage | 120/240, 1ø |
| Load Shed Integrated | No |
| Rated Amperage | 100 |
| Service Entrance Rated | Yes |
| NEMA Rating | 3 |
| Circuited | No |
| Home Link | No |
| SingleLoad | Yes |
| Enclosure Type | 3R |
| Canada Approved | No |
