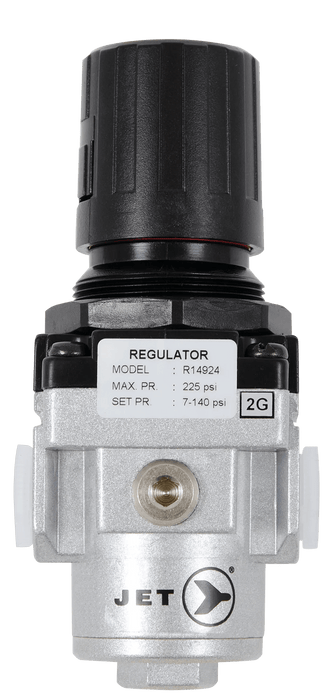

Jet Air Regulator 3/8" NPT - Intermediate
Original price
$42.95
-
Original price
$42.95
Original price
$42.95
$42.95
$42.95
-
$42.95
Current price
$42.95
Return Policy
Please make sure to read our Return Policy.
Standard Shipping
Estimated Delivery Time: 7-10 Business Days. We currently ship to addresses within Canada only.
In-Store Pick Up
Monday-Friday: 9AM-5PM
Availability:
Only 2 left!
- Industrial construction Aluminum die cast body (9 times safer than a plastic body). Allows use at higher temperatures and better tightening of piping without stripping the threads
- Used to maintain steady outlet pressure unaffected by variations in inlet pressure
- Works on a Diaphragm operated relieving type mechanism with pressure compensated by balanced poppet and can be installed in any position
- Regulator with Non Raising “Press to Lock” adjusting knob
Technical Specifications
| Standards | ISO 6953-1 |
| Height (in.) | 5.31 |
| Height (mm.) | 135 |
| Max. Air Flow (cfm) | 88 |
| Max. Air Flow (lpm) | 2500 |
| Max. Operating Pressure (PSI) | 220 |
| Port Size (in.) | 3/8 |
| Pressure Gauge Port Size (in.) | 1/8 |
| Temperature range (°C) | 0°C to 60°C |
| Temperature range (°F) | 32°F to 140°F |
| Width (in.) | 2.16 |
| Width (mm.) | 55 |
Product Dimensions
| Assembled Width | 2.16 in |
| Assembled Height | 5.31 in |
